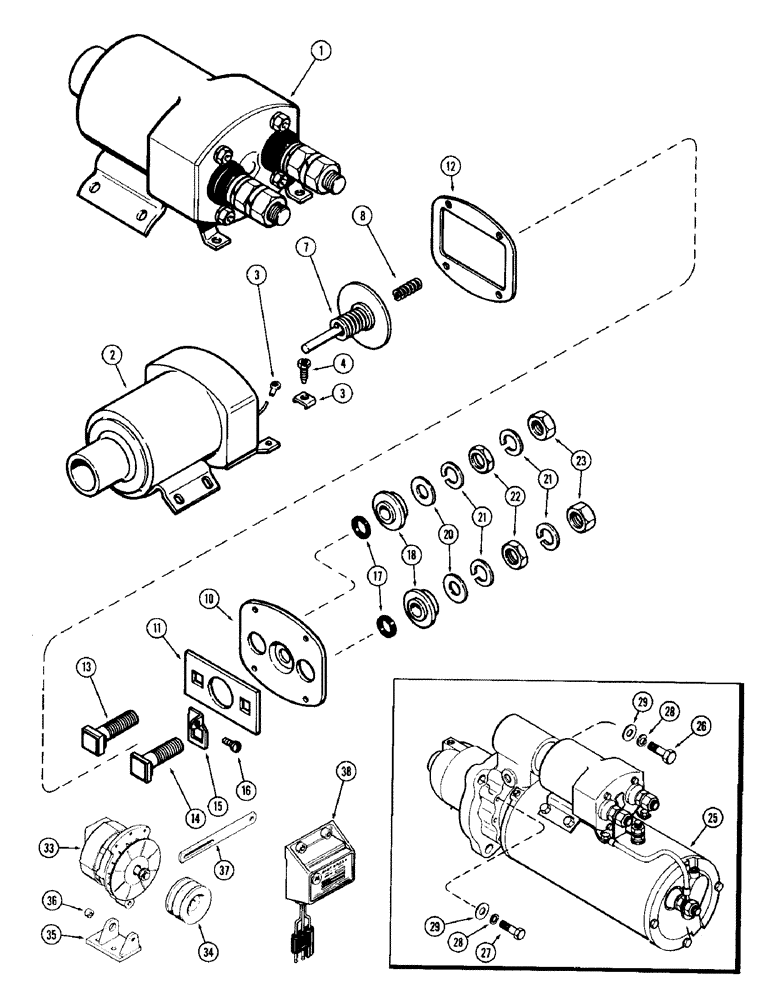

Запчасти Case 980 (045A) - A42376 SOLENOID(504BDT) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A42376
SWITCH
SOLENOID ASSY - starter (Delco #1119848)
1шт.
2
NSS
NOT SOLD SEPARAT
CASE & COIL ASSY
1шт.
3
A42407
CLAMP
- terminal
1шт.
4
D32502
SCREW,Hex, #10 - 32 x 3/8"
- terminal clamp
1шт.
5
A42408
ELECTRICAL WIRE
WIRE - ground
1шт.
7
D32498
CONTACT
DISC ASSY - contact
1шт.
8
A42411
VALVE SPRING
SPRING - return, contact disc
1шт.
A42412
PLATE
ASSY - terminals
1шт.
10
A42410
PLATE
- terminals
1шт.
11
D32507
RUBBER INSULATOR
INSULATOR - plate
1шт.
12
A42260
GASKET
- terminal plate
1шт.
13
A42413
STUD
TERMINAL - battery (1/2" N.C. w/1-21/32" thrd. length)
1шт.
14
D32506
STUD
TERMINAL - starter (1/2" N.C. w/1-3/16" thrd. length)
1шт.
15
A42406
SUPPORT
- coil lead
1шт.
16
175-56
SCREW - coil lead (#6-32 x 3/16" truss hd.) Slotted Truss Hd, #6-32 x 3/16"
1шт.
17
D32510
BUSHING
- insulated, terminal studs, outside
2шт.
18
A42409
BUSHING
INSULATOR - terminals (Order A43701 package)
2шт.
20
D30006
WASHER
- 1/2" lock
2шт.
21
192-113
LOCK WASHER,1/2"
WASHER - terminal studs ( lock) 1/2"
4шт.
22
129-145
JAM NUT,Jam, 1/2"-13, G5
2шт.
23
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
25
R26137
STARTER MOTOR
STARTING MOTOR - (See figures 40 and 42), starter mounting hardware
1шт.
26
13-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
- starting motor to block, starter mounting hardware
2шт.
27
13-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
Starting motor to block, starter mounting hardware Hex, 1/2"-13 x 3 1/4", G5
1шт.
28
92-8
LOCK WASHER,1/2"
starter mounting hardware 1/2"
3шт.
29
A75865
WASHER
- plain, starter mounting hardware
3шт.
33
A41360
ALTERNATOR
ASSY - (See figure 44), mounting hardware
1шт.
34
A41361
PULLEY
- drive, alternator mounting hardware
1шт.
35
A38492
BRACKET
- mtg., alternator, mounting hardware
1шт.
36
S96111
SPACER - alternator mtg. bracket, hardware
1шт.
37
A59098
STRAP
- mtg., alternator mounting hardware
1шт.
38
A75072
REGULATOR
- voltage
1шт.
Выбрано товаров: 32
