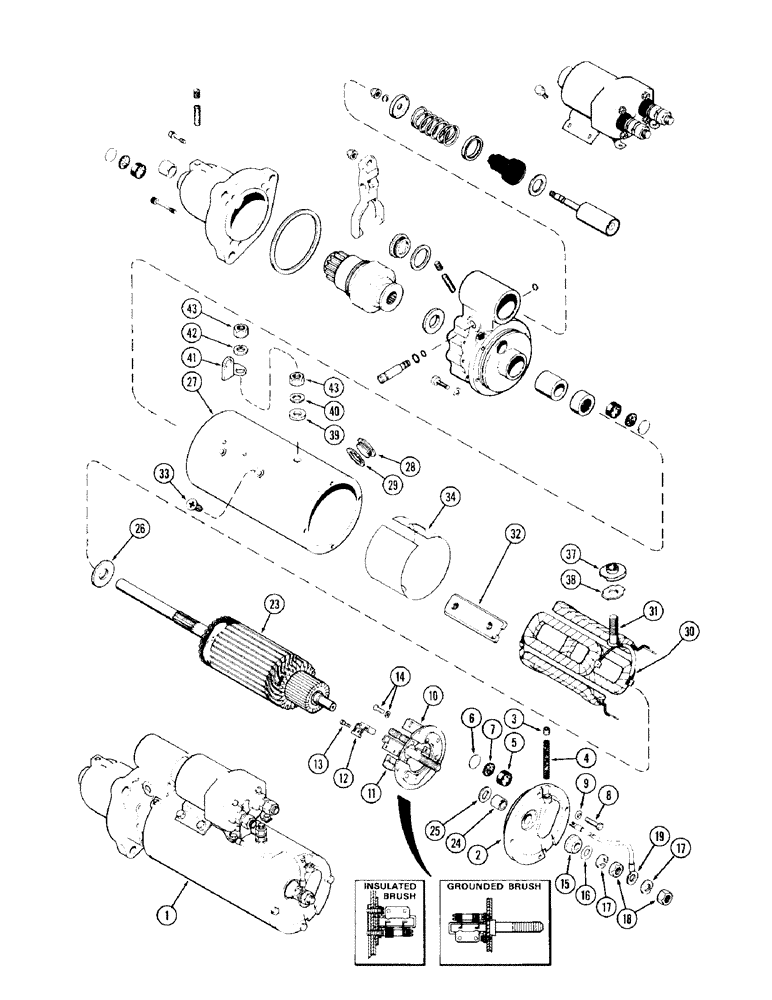

Запчасти Case 980 (040) - R26137 STARTER, (504BDT) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

R26137

STARTER MOTOR

STARTER ASSY - (Delco Remy #1113998)

1шт.

2

A40897

FRAME

FRAME ASSY - commutator end

1шт.

3

221-1041

PLUG

PLUG - oil wick hole

1шт.

4

R15023

WICK

WICK - oil

1шт.

5

A41923

PLUG

PLUG - oil reservoir (Felt)

1шт.

6

41-57

PLUG,Exp, 1 1/32"

PLUG - oil reservoir hole (1-1/32" expansion)

1шт.

7

A41973

GASKET

GASKET - expansion plug

1шт.

8

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Commutator end frame Hex, 1/4"-28 x 1", G5

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

A42373

PLATE

PLATE ASSY - brush holder mtg. (Less brushes)

1шт.

11

A25393

SPRING

SPRING - brush tension

8шт.

12

A41456

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

8шт.

13

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SCREW - brush attach. (#8-32 x 5/16" rd. hd.)

8шт.

14

A43847

SCREW,3/8" - 32 x 1/2"

SCREW ASSY - mtg. plate (w/lockwasher)

3шт.

15

A43701

BUSHING

BUSHING - insulating, terminal stud

1шт.

16

D30006

WASHER

WASHER - terminal stud (1/2 x 7/8 x 1/32")

1шт.

17

192-113

LOCK WASHER,1/2"

WASHER - term. stud ( lock) 1/2"

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

19

A41978

ELECTRICAL WIRE

WIRE WIRE - term., Serial Range: stud-solenoid

1шт.

23

A41458

ARMATURE

ARMATURE - starter

1шт.

24

A42323

BUSHING

BUSHING - armature pilot (At comm. end)

1шт.

25

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust, armature (At comm. end)

1шт.

26

A40892

WASHER

WASHER - thrust, armature (At lever hsg.)

1шт.

27

NSS

NOT SOLD SEPARAT

FRAME - start housing

1шт.

28

R21587

PLUG

PLUG - brush inspection

2шт.

29

A41924

GASKET

GASKET - inspection plug

2шт.

30

A41590

COIL

COIL ASSY - field

1шт.

31

A40896

STUD

STUD - field terminal

1шт.

32

R15115

SHOE

SHOE - pole

4шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes (3/8 x 5/8" N.C. Phillips hd.)

8шт.

34

A44169

INSULATOR

INSULATION - coil

1шт.

A41925

BUSHING

BUSHING ASSY - field coil stud insulation

1шт.

37

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud (Inner)

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

39

D30005

INSULATOR

INSULATOR - field coil stud (Outer)

2шт.

40

D30006

WASHER

WASHER - field coil stud (1/2 x 7/8 x 1/32")

1шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - coil, Serial Range: stud-solenoid

1шт.

42

192-113

LOCK WASHER,1/2"

WASHER - lock () 1/2"

1шт.

43

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

2шт.
