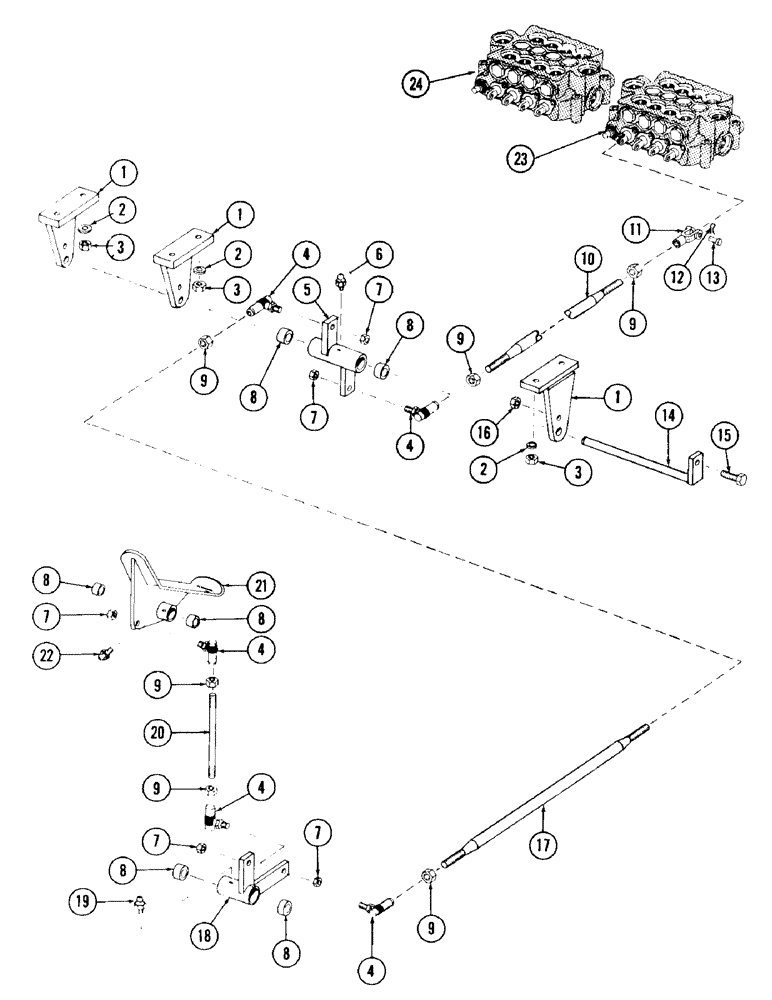

Запчасти Case 980 (206) - TOOL CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S218939

SPARE PART

3шт.

2

95-8

WASHER,1/2"

6шт.

3

131-10

NUT,1/2"-13, GB

6шт.

4

S215594

BALL

JOINT

5шт.

5

S220210

SPARE PART

1шт.

6

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

1шт.

7

131-5

LOCK NUT,3/8"-16, GB

3/8"-24 NF

5шт.

8

A30586

NEEDLE BEARING

Needle

6шт.

9

25-156

JAM NUT,Jam, 3/8"-24, G5

6шт.

10

S219273

ROD

Connecting

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

12

132-67

COTTER PIN,5/32" x 3/4"

1шт.

13

S10768

PIN

Clevis - 3/8" dia. x 1.016" grip length

1шт.

14

S218966

SPARE PART

1шт.

15

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

16

131-2

NUT,1/4"-20, GB

1шт.

17

S219278

ROD

Connecting

1шт.

18

S220211

ARM ASSY.

BELLCRANK

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

20

S91681

ROD

Connecting

1шт.

21

S504577

SPARE PART Tool control

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

23

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 150)

1шт.

24

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 152)

1шт.
