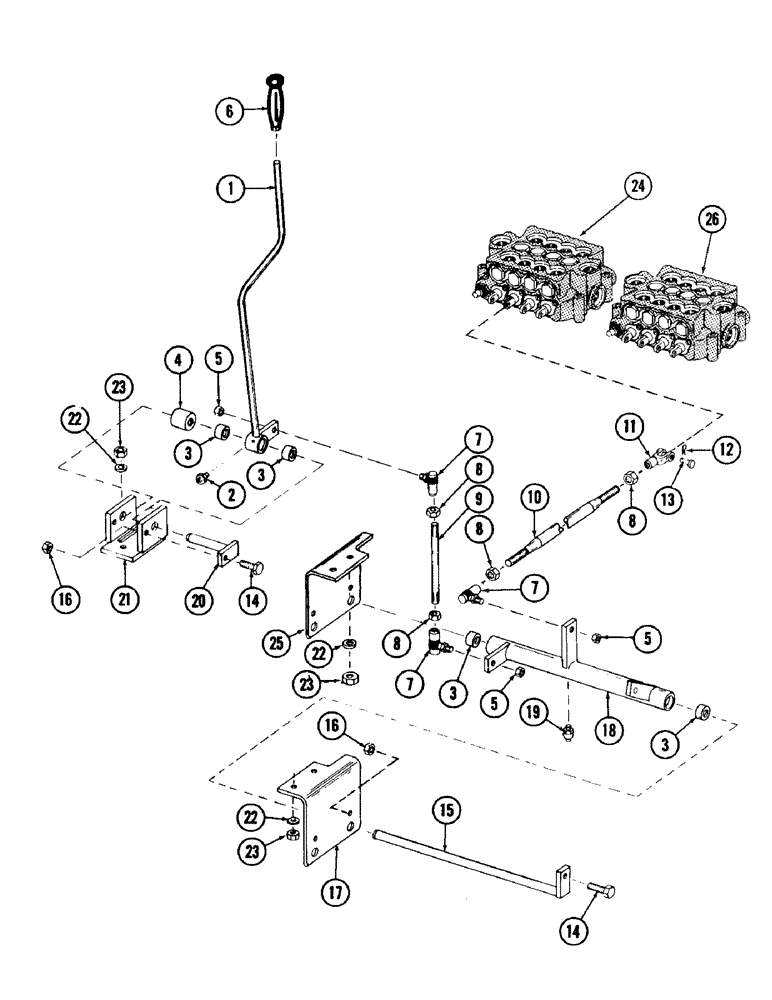

Запчасти Case 980 (200) - CROWD CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S506214

SPARE PART Crowd control

1шт.

2

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

1шт.

3

A30586

NEEDLE BEARING

Needle

4шт.

4

S87490

SPACER

SPARE PART

1шт.

5

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking - 3/8"-24 NC

3шт.

6

S63411

HANDLE

GRIP, Crowd Control

1шт.

7

S215594

BALL

JOINT

3шт.

8

25-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

9

S91683

ROD

Connecting

1шт.

10

S219275

ROD

Connecting

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

12

132-67

COTTER PIN,5/32" x 3/4"

1шт.

13

S10768

PIN

Clevis - 3/8" dia. x 1.016" grip length

1шт.

14

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

15

S218961

SHAFT ASSY.

1шт.

16

131-2

NUT,1/4"-20, GB

2шт.

17

S218940

SPARE PART

1шт.

18

S220214

SPARE PART

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

20

S217833

SHAFT ASSY.

1шт.

21

S219073

SUPPORT

ASSY

1шт.

22

95-8

WASHER,1/2"

1шт.

23

131-10

NUT,1/2"-13, GB

1шт.

24

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 152)

1шт.

25

S220257

SPARE PART

1шт.

26

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 150)

1шт.
