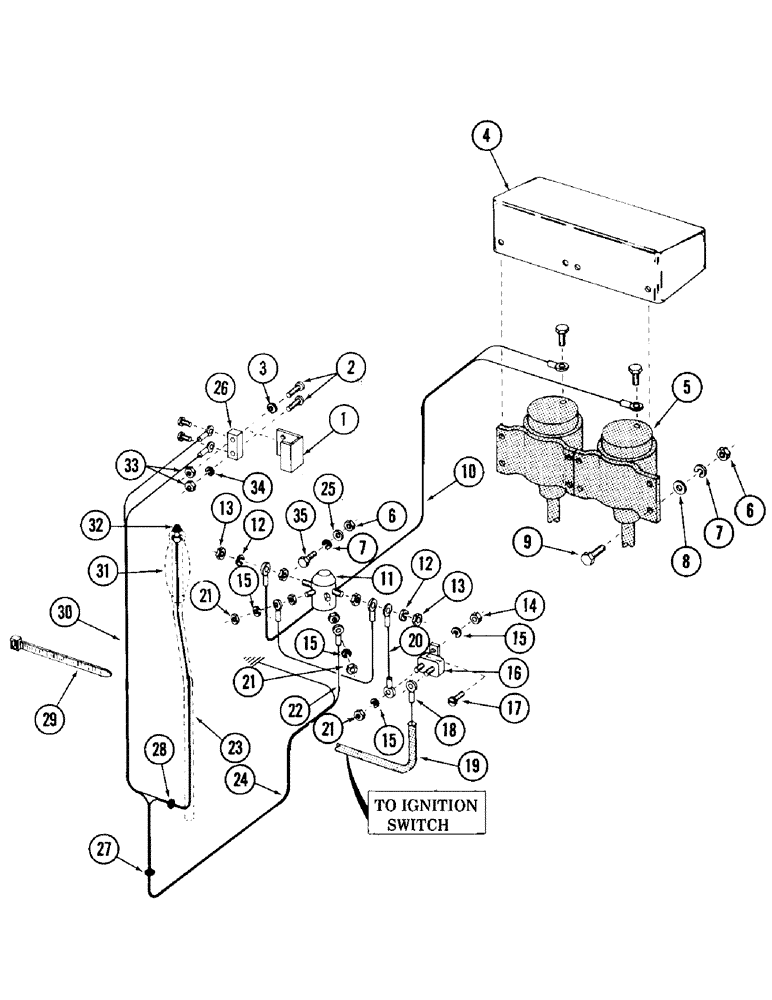

Запчасти Case 980 (190) - FAST HOIST ELECTRICAL (05) - UPPERSTRUCTURE CHASSIS

1

S72426

SPARE PART Micro switch

1шт.

2

173-68

SCREW,Sl Rnd Hd, #6 - 32 x 1 1/4"

Machine - No. 6-32 NC x 1-1/4"

2шт.

3

195-10

WASHER,#8

WASHER, flat - No. 6

2шт.

4

S220790

SPARE PART COVER, solenoid

1шт.

5

REF

INSTRUCTION

SOLENOID - (For breakdown, see page 190)

2шт.

6

25-104

NUT,1/4"-20, G5

10шт.

7

92-4

LOCK WASHER,1/4"

10шт.

8

195-18

WASHER,1/4"

Lock

8шт.

9

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

10

S219445

SPARE PART 28" long - No. 10 ga.

1шт.

11

A18501

SOLENOID SWITCH

SWITCH, Solenoid, Manifold Magnetic

1шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

25-155

JAM NUT,Jam, 5/16"-24, G5

2шт.

14

129-7

NUT,Hex, #10 - 24

2шт.

15

92-3

LOCK WASHER,#10

2шт.

16

S49918

BREAKER

CIRCUIT

1шт.

17

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

Machine - No. 10-24 NC x 5/8"

2шт.

18

S221230

SPARE PART HARNESS - 24" long - 12 ga.

1шт.

19

M20693

SPARE PART LOOM - 32" long

1шт.

20

S214163

SPARE PART ASSY - 7" long - 12 ga.

1шт.

21

129-27

NUT,Hex, #10 - 32

2шт.

22

S206566

ELECTRICAL WIRE

WIRE ASSY - 3-1/2" long - 14 ga.

1шт.

23

S218253

HARNESS

WIRE - 26" long - 16 ga.

1шт.

24

S219446

SPARE PART WIRE - 80" long - 16 ga.

1шт.

25

95-3

WASHER,#12

WASHER, flat - 1/4"

2шт.

26

L11349

SWITCH

Micro - (Swing)

1шт.

27

D42106

GROMMET

1шт.

28

D21904

SPARE PART GROMMET

1шт.

29

S73387

CLIP

TIE, cable

2шт.

30

S217710

SPARE PART WIRE

1шт.

31

S218254

GRIP

Handle

1шт.

32

S235948

SWITCH

ASSY, push button

1шт.

33

129-5

NUT,#6-32

2шт.

34

193-24

LOCK WASHER,Int Tooth, #6

2шт.

35

75-412

SCREW,Rd, 1/4" x 3/4"

1/4"-20 NC x 7/8" (To mount S96652)

2шт.
