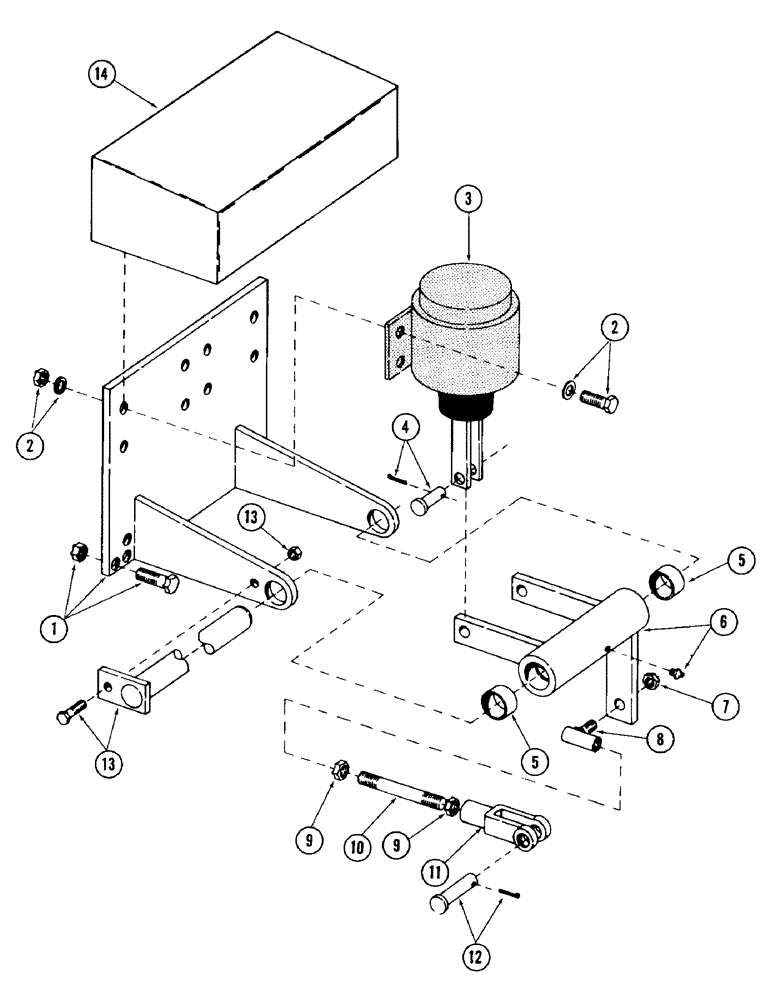

Запчасти Case 980 (188) - FAST HOIST LINKAGE AND ATTACHING PARTS (CONTD) (05) - UPPERSTRUCTURE CHASSIS

1

S219436

SPARE PART Solenoid mounting

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

131-10

NUT,1/2"-13, GB

3шт.

2

25-104

NUT,1/4"-20, G5

8шт.

92-4

LOCK WASHER,1/4"

8шт.

195-18

WASHER,1/4"

8шт.

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

3

REF

INSTRUCTION

SOLENOID (For breakdown, see figure 192)

2шт.

4

S10737

CLEVIS PIN

5/16" x .766" grip length

1шт.

132-78

SPARE PART PIN, cotter - 1/8" x 1" long

1шт.

5

A30586

NEEDLE BEARING

Needle

2шт.

6

S220218

ARM ASSY.

BELLCRANK

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

7

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking - 3/8"-24 NF

1шт.

8

S215594

BALL

JOINT

1шт.

9

25-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

10

S91966

SPARE PART Connecting

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

12

S10768

PIN

Clevis - 3/8" x 1.016" grip length

1шт.

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

PIN, cotter - 5/32" x 1-1/2" long

1шт.

13

S219444

SHAFT

SPARE PART

1шт.

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

131-2

NUT,1/4"-20, GB

1шт.

14

S220790

SPARE PART

1шт.
