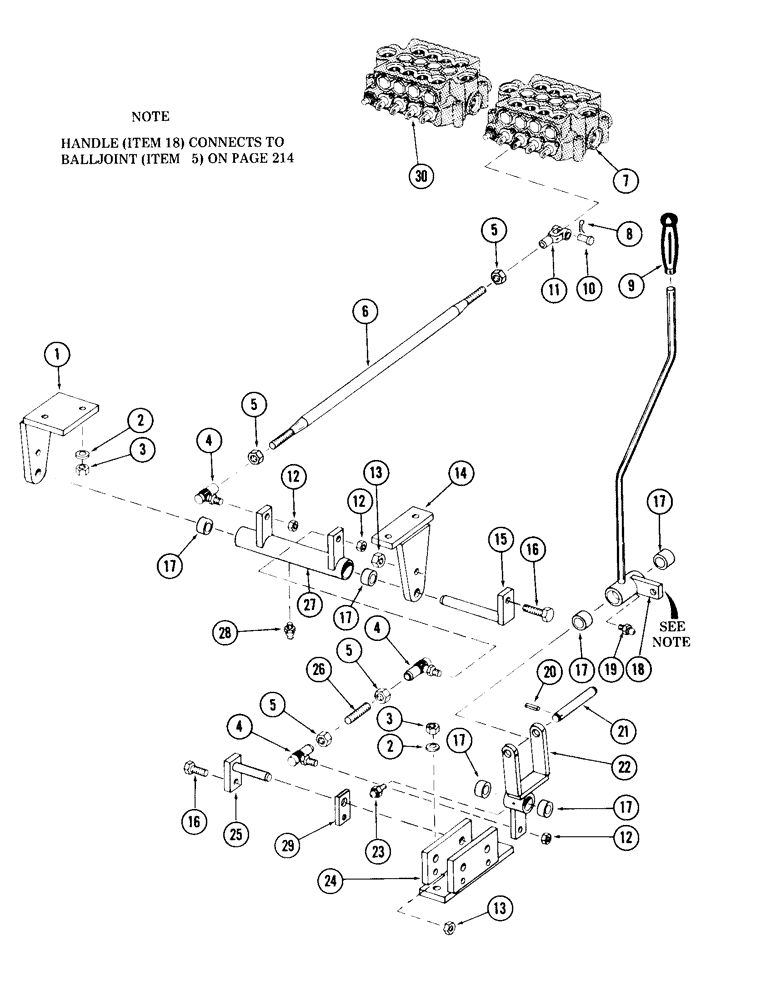

Запчасти Case 980 (186) - HOIST CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S219366

SPARE PART

1шт.

2

95-8

WASHER,1/2"

4шт.

3

131-10

NUT,1/2"-13, GB

4шт.

4

S215594

BALL

JOINT

3шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

6

S218942

ROD

Connecting

1шт.

7

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 150)

1шт.

8

132-67

COTTER PIN,5/32" x 3/4"

PIN, cotter - 5/32" dia. x 1"

1шт.

9

S63411

HANDLE

GRIP

1шт.

10

S10768

PIN

Clevis - 3/8" dia. x 1.016" grip length

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

12

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking - 3/8"-24 NF

3шт.

13

131-2

NUT,1/4"-20, GB

1шт.

14

S220261

SPARE PART

1шт.

15

S217838

SHAFT

SPARE PART

1шт.

16

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

17

A30586

NEEDLE BEARING

Needle

6шт.

18

S506215

HANDLE

Hoist control

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

20

138-61

LOCK PIN,1/8" x 1", Slotted

1шт.

21

S87535

SHAFT

1шт.

22

S220209

ARM ASSY.

SPARE PART BELLCRANK

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

24

S219036

SUPPORT

SPARE PART

1шт.

25

S218962

SHAFT ASSY.

SPARE PART

1шт.

26

S87534

ROD

Connecting

1шт.

27

S220219

SPARE PART

1шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

29

S93485

SPARE PART

1шт.

30

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 152)

1шт.
