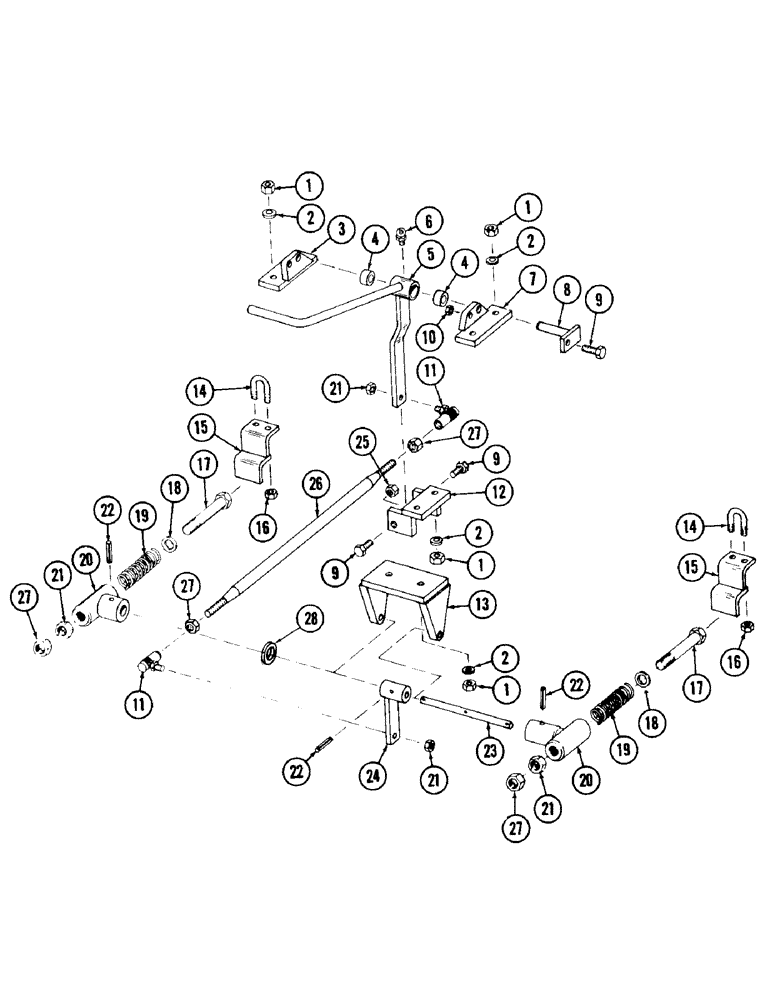

Запчасти Case 980 (166) - CRAWLER DETENT CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

8шт.

2

95-8

WASHER,1/2"

flat 1/2"

8шт.

3

S218944

BRACKET

1шт.

4

A30586

NEEDLE BEARING

BEARING, needle

2шт.

5

S220559

HANDLE, crawler detent control

1шт.

6

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, lube - 1/4" NPT x 65 degrees

1шт.

7

S218943

BRACKET

1шт.

8

S218962

SHAFT ASSY.

SHAFT

1шт.

9

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

10

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

11

S215594

BALL

JOINT, ball

2шт.

12

S219342

BRACKET

1шт.

13

S218945

BRACKET

1шт.

14

S63280

"U" BOLT - 3/8" NC

2шт.

15

S219355

STOP ASSEMBLY

2шт.

16

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

17

14-656

SCREW,3/8" - 24 x 3 1/2"

CPSW - 3/8" - 24 NF x 3-1/2"

2шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

2шт.

19

S13700

SPRING

2шт.

20

S206012

HOUSING, detent

2шт.

21

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking - 3/8" - 24 NF

4шт.

22

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, roll - 15/64" dia. x 1-1/4"

3шт.

23

S91729

SHAFT

1шт.

24

S218960

BELLCRANK

1шт.

25

25-144

JAM NUT,Jam, 1/4"-20, G5

jam - 1/4" - 20 NC

2шт.

26

S218559

ROD

connecting

1шт.

27

25-156

JAM NUT,Jam, 3/8"-24, G5

jam - 3/8" - 24 NF

4шт.
