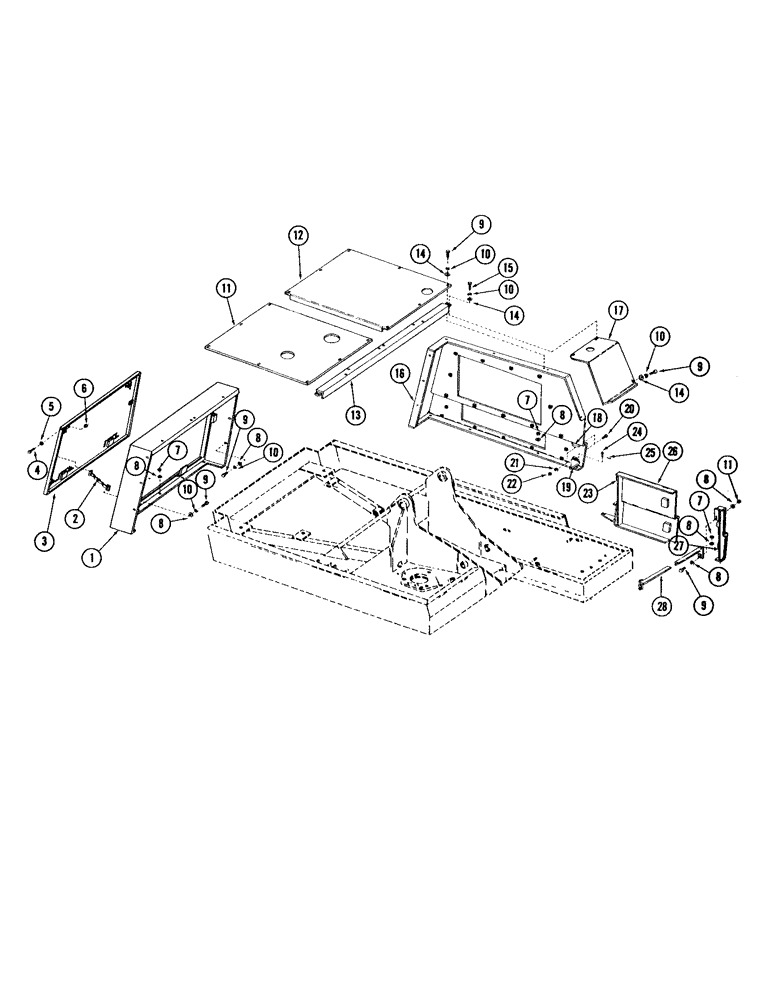

Запчасти Case 980 (082) - ENGINE SHROUD (LEFT SIDE) (05) - UPPERSTRUCTURE CHASSIS

1

S604401

FRAME, rear door

1шт.

2

S219460

BRACE

door support R.H.

1шт.

S219473

BRACE

door support L.H.

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

10шт.

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

10шт.

95-3

WASHER,#12

flat - 1/4"

10шт.

3

S604402

DOOR

rear

1шт.

Ref #3A - S219346 Latch 06/07/96

1шт.

4

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

CPSW - 3/8" - 16 NC x 2"

2шт.

5

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

2шт.

6

25-146

JAM NUT,Jam, 3/8"-16, G5

jam - 3/8" - 16 NC

2шт.

7

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

11шт.

8

S95569

WASHER

flat - 1/2"

18шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

25шт.

10

92-8

LOCK WASHER,1/2"

25шт.

11

S604049

COVER, top right

1шт.

12

S604045

COVER, top left

1шт.

13

S507204

CHANNEL

1шт.

14

S86132

WASHER

flat - 1/2"

21шт.

15

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

16

S953406

SHROUD, side panel left rear

1шт.

17

S506959

SHROUD

1шт.

18

S222540

BRACKET, upper door mounting

1шт.

19

S222528

BRACKET, lower door mounting

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

21

S96099

WASHER

flat hardened - 3/8"

8шт.

22

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

23

S96360

GUIDE, door

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

S94625

WASHER

flat - 3/8"

2шт.

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

2шт.

24

S223024

PIN

1шт.

25

A70250

PIN

hair

1шт.

26

S604417

DOOR

1шт.

Ref #26A - S219346 Latch 06/07/96

1шт.

27

S506957

POST

1шт.

28

S507203

BRACE

1шт.
