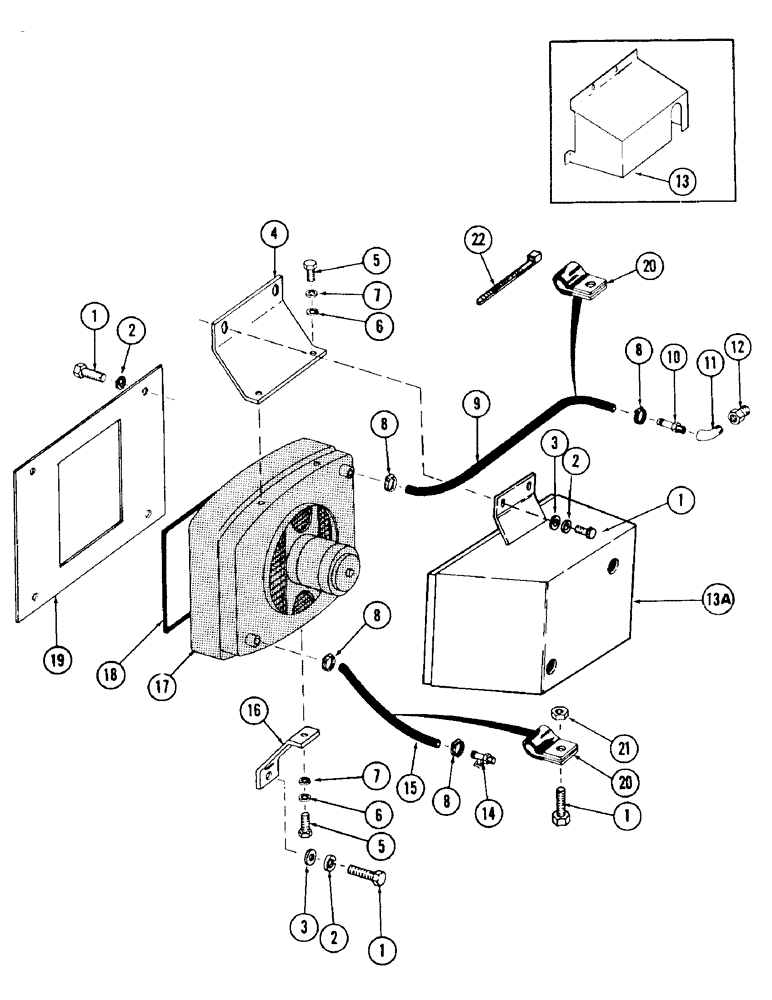

Запчасти Case 980 (078) - HEATER AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

2

92-6

LOCK WASHER,3/8"

7шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

Flat

3шт.

4

S219433

SPARE PART Top mounting

1шт.

5

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

6

195-16

WASHER,#12

WASHER, flat - 1/4"

3шт.

7

92-4

LOCK WASHER,1/4"

3шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

9

A42610

LARGE HOSE

HOSE,LARGE Low pressure - 5/8" ID x 70" long - (50' roll required)

1шт.

10

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

INSERT, straight hose

1шт.

11

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

Pipe - 1/2"-14 NPT female x 1/2"-14 NPT female

1шт.

12

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING, 1/2"-14 NPT female x 3/4"-14 NPT male

1шт.

13

S505728

SPARE PART (Used on units with S/N 6203000 thru 6203568) - (See insert)

1шт.

13a

S606733

SHIELD

(Used on units with S/N 6203569 and after)

1шт.

14

S83788

VALVE

Water hose

1шт.

15

A42610

LARGE HOSE

HOSE,LARGE Low pressure - 5/8" ID x 85" long - (50' roll required)

1шт.

16

S91959

SPARE PART Bottom mounting

1шт.

17

REF

INSTRUCTION

HEATER, hot water - (For breakdown, see page 80)

1шт.

18

M20696

SEAL

MOLDING, rubber - (10 ft. roll) 36" required

1шт.

19

S219434

SPARE PART Cover

1шт.

20

R14668

CLAMP

Hose

2шт.

21

131-6

LOCK NUT,3/8"-16, GC

1шт.

22

S73387

CLIP

TIE, cable

1шт.
