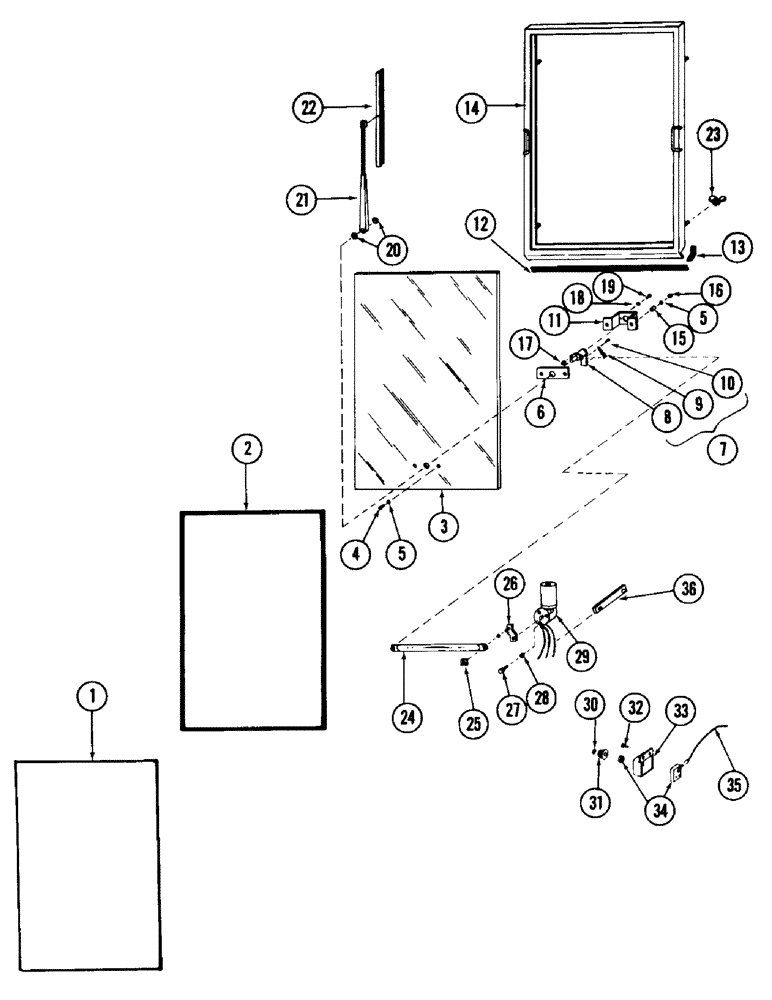

Запчасти Case 980 (074) - CAB AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
CAB ASSEMBLY (MACHINERY ITEM)
1шт.
S221460
WINDOW
ASSEMBLY, upper front
1шт.
1
M20683
STRIP
filler - (15 ft. roll) 158" required
1шт.
Ref #1 - Replaced by S118471X 06/07/96
1шт.
2
F22420
SEAL
SETTING MATERIAL, glass - 158" long
1шт.
3
S89971
SHIELD
GLASS
1шт.
4
S90069
SCREW
pan head - 1" x 10 NC
2шт.
5
S90070
WASHER, flat - No. 10
4шт.
6
S218046
GASKET
1шт.
7
S218045
ARM ASSY.
PIVOT ARM ASSEMBLY
1шт.
8
S90074
ARM ASSY.
ARM, pivot - (Order S218045)
1шт.
9
S90073
CHAIN
1шт.
10
S90075
SCREW
binding head - 5/16" x 8 NC
1шт.
11
S94305
BRACKET
pivot arm
1шт.
12
S75838
SEAL
weather - 32.4" long
1шт.
13
F67064
SEAL
2шт.
14
S94304
FUNNEL
FRAME, window
1шт.
15
S90068
BUSHING
2шт.
16
S90072
NUT
lock - No. 10-24 NC
2шт.
17
129-6
NUT,#8-32
- No. 8 - 36 NF
2шт.
18
193-25
LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN
WASHER, LOCK, Int Tooth, #8
2шт.
19
S90071
SCREW
pan head No. 8 - 36 NF x 5/8"
2шт.
20
S90044
WASHER
flat
2шт.
21
S217996
ARM
wiper
1шт.
22
S90047
HALF BLADE
BLADE, wiper
1шт.
23
S90039
NUT
wing - 3/8" - 16 NC
1шт.
24
S90046
PITMAN
LINK, arm
1шт.
25
S90045
CLIP
- (Fits in drive arm)
1шт.
26
S89993
ARM
drive
1шт.
27
187-1517
CPSW - 1/4" - 28 NF x 5/8"
3шт.
28
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
29
S90043
MOTOR
wiper - (Used on units with serial number 6303000 thru 6203546)
1шт.
S225044
MOTOR
wiper - (Used on units with serial number 6203547 and after
1шт.
30
S90057
DECAL
1шт.
31
A41647
KNOB
wiper switch
1шт.
32
S90056
SCREW
- 1/4" - 20 NC x 1/2"
2шт.
33
S90076
BRACKET
wiper switch
1шт.
34
S88046
SWITCH
wiper - (Includes nut) - (Used on units with serial number 6203000 thru 6203546)
1шт.
S225028
IGNITION SWITCH
SWITCH, wiper - (Includes nut) - (Used on units with serial number 6203547 and after)
1шт.
35
S90088
WIRE ASSEMBLY
1шт.
36
S90066
CLIP
wiper wires
2шт.
Выбрано товаров: 41
