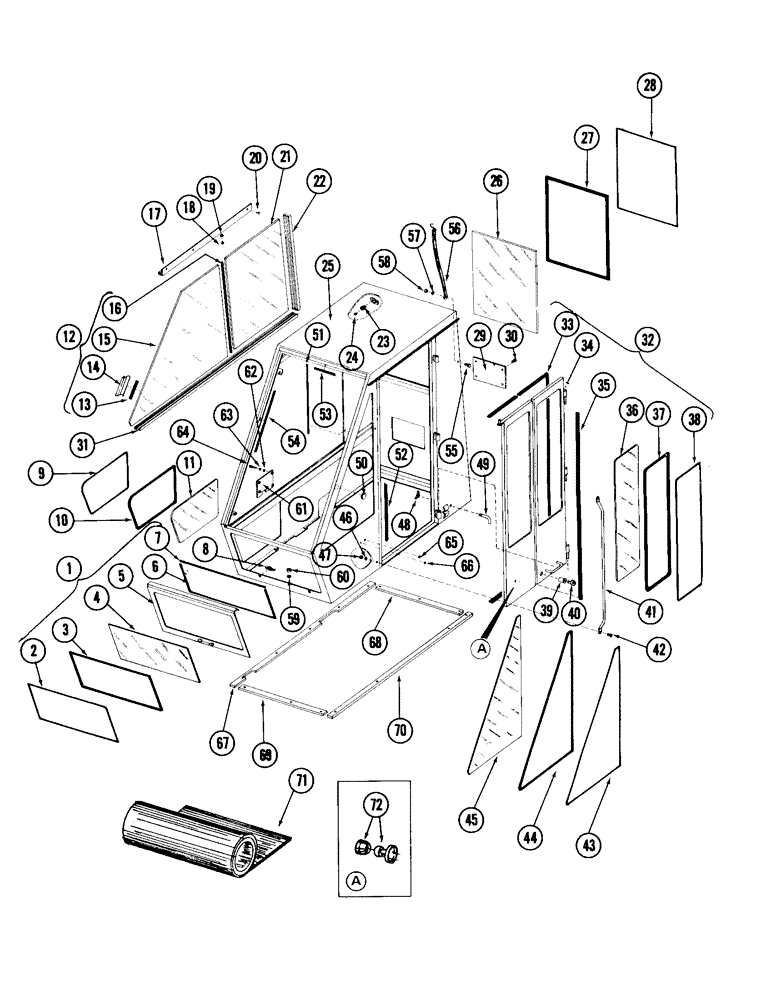

Запчасти Case 980 (070) - CAB AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

NSS

NOT SOLD SEPARAT

CAB ASSEMBLY (MACHINERY ITEM)

1шт.

1

S221463

COVER

ASSEMBLY

1шт.

2

M20683

STRIP

filler - (15 ft. roll) 86.8" required

1шт.

3

F22420

SEAL

SETTING MATERIAL, glass - 86.8" long

1шт.

4

S94320

GLASS

1шт.

5

S94319

FRAME, cover

1шт.

6

S75852

SEAL - 63.6" long

1шт.

7

S75851

SEAL - 30.5" long

1шт.

8

S94321

NUT

wing - 5/16" NC

2шт.

9

M20683

STRIP

filler - (15 ft. roll) 42" required

1шт.

10

F22420

SEAL

SETTING MATERIAL, glass - 42" long

1шт.

11

S94303

GLASS

1шт.

12

S218056

CAB GLASS ASSY

GLASS ASSEMBLY, sliding

1шт.

13

A43252

HANDLE

SEAL

1шт.

14

A43253

HANDLE

1шт.

15

S89974

GLASS

1шт.

16

S90092

SEAL

1шт.

17

S218052

RETAINER

ASSEMBLY

1шт.

18

S90063

SCREW

Phillips pan head - No. 10 x 3/4"

2шт.

19

S90062

SPACER

2шт.

20

S90054

SCREW, Phillips pan head - 1/4" - 20 NC x 1/2"

4шт.

21

S89968

GLASS

1шт.

22

F22128

SEAL

CHANNEL, glass run

1шт.

Ref #22 - (24.75") 06/07/96

1шт.

23

S94282

BUMPER - (Inside back of cab)

2шт.

24

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

Phillips head - No. 10 x 5/8"

2шт.

25

S94280

BODY, cab

1шт.

26

S89969

GLASS

1шт.

27

F22420

SEAL

SETTING MATERIAL, glass - 102" long

1шт.

28

M20683

STRIP

filler - (15 ft. roll) 102" required

1шт.

29

S90094

COVER - (Not used with cab heater)

1шт.

30

182-279

SCREW

pan head - 3/8" x 5/8" (Not used with cab heater)

4шт.

31

S90055

STRIP

1шт.

32

S221461

DOOR ASSY.

DOOR ASSEMBLY

1шт.

33

S75838

SEAL

- 109" long

1шт.

34

S94306

FRAME

door

1шт.

35

S90079

SEAL - 54" long (Between doors)

1шт.

36

S89973

GLASS

2шт.

37

F22420

SEAL

SETTING MATERIAL, glass - 94" long

1шт.

38

M20683

STRIP

filler - (15 ft. roll) 94" required

1шт.

39

LOCK (SEE NOTE ON PAGE 72)

1шт.

Ref #39 - S90080 06/07/96

1шт.

40

KEY - (Set of two)

1шт.

41

S90093

HANDLE

1шт.

42

S90048

SCREW, Phillips pan head - 5/16" x 3/4"

2шт.

43

M20683

STRIP

filler - (15 ft. roll) 106" required

1шт.

44

F22420

SEAL

SETTING MATERIAL, glass - 106" long

1шт.

45

S89967

GLASS

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

- 5/16" - 18 NC

2шт.

48

129-400

WING NUT,1/2"-13

NUT, wing - 1/2" NC

1шт.

49

S90058

HOOK

1шт.

50

S94281

PLUG, button

1шт.

51

S90053

WEATHERSTRIP - 35.5" long

1шт.

52

S90049

SEAL - 55" long

1шт.

53

F67064

SEAL - 32.8" long

1шт.

54

F67064

SEAL - 64" long

1шт.

55

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

56

S92823

RETAINER, rubber - (Window storage)

1шт.

57

195-18

WASHER,1/4"

flat - 9/32"

1шт.

58

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

59

S86132

WASHER

hard - 17/32" ID x 1-1/16" OD

15шт.

60

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

15шт.

61

S220310

COVER

1шт.

62

195-18

WASHER,1/4"

flat - 9/32"

4шт.

63

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

64

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

65

S93083

PLUG

1шт.

66

S92987

PLUG

1шт.

67

S87620

STRIP, rubber

1шт.

68

S87616

STRIP, rubber

1шт.

69

S218166

STRIP

rubber

1шт.

70

S87617

STRIP, rubber

1шт.

71

S603731

MAT, floor

1шт.

72

S97487

PLUNGER

AND SOCKET ASSEMBLY - (Hold door together in open position)

1шт.

46

98-5

WASHER, lock - 5/16"

2шт.
