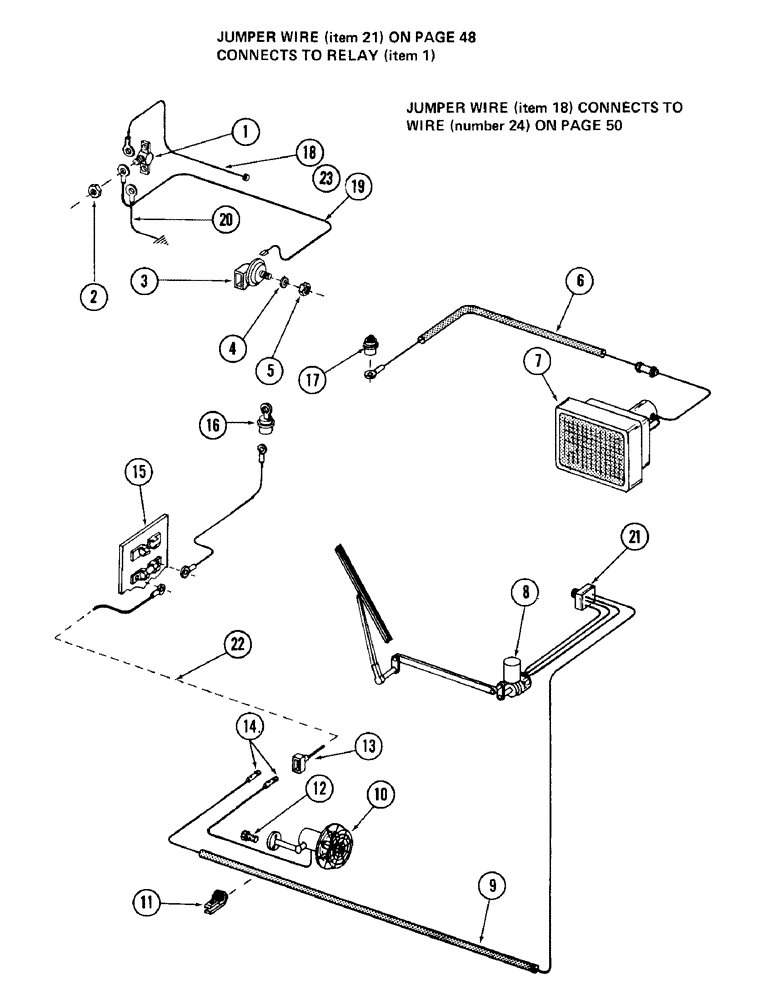

Запчасти Case 980 (052) - HEATER, DEFROSTER AND WIPER ELECTRICAL SYSTEM (05) - UPPERSTRUCTURE CHASSIS

1

A18501

SOLENOID SWITCH

RELAY

1шт.

2

131-2

NUT,1/4"-20, GB

1шт.

3

S203189

HORN

1шт.

4

195-16

WASHER,#12

Flat - 1/4"

1шт.

5

S64752

NUT

1/4" - 20 NC

1шт.

6

M20693

SPARE PART LOOM - 30" long

1шт.

7

REF

INSTRUCTION

HEATER hot water - (For breakdown, see page 80)

1шт.

8

REF

INSTRUCTION

MOTOR AND SWITCH, wiper - (Furnished with cab)

1шт.

9

M20693

SPARE PART LOOM - 70" long

1шт.

10

S222133

FAN

Defroster

1шт.

Ref #10 - (24 Volt) 06/07/96

1шт.

Ref #10A - S111274 Motor Only 06/07/96

1шт.

11

A61275

CLIP

5шт.

12

S40799

SCREW

Machine - 1/4"-20 NC x 1/2"

3шт.

13

223-270

SPARE PART

1шт.

14

223-191

TERMINAL CONNECTOR,14 - 16

2шт.

15

S213686

HOLDER

Fuse

1шт.

16

S76366

SWITCH

Ignition

1шт.

17

REF

INSTRUCTION

SWITCH, heater - (Furnish with heater, see page 80)

1шт.

18

S209787

ELECTRICAL WIRE

WIRE Jumper - 14 gauge wire x 20" long

1шт.

19

S223610

SPARE PART Jumper - 12 gauge wire x 8" long

1шт.

20

S223612

SPARE PART Jumper - 12 gauge wire x 6" long

1шт.
