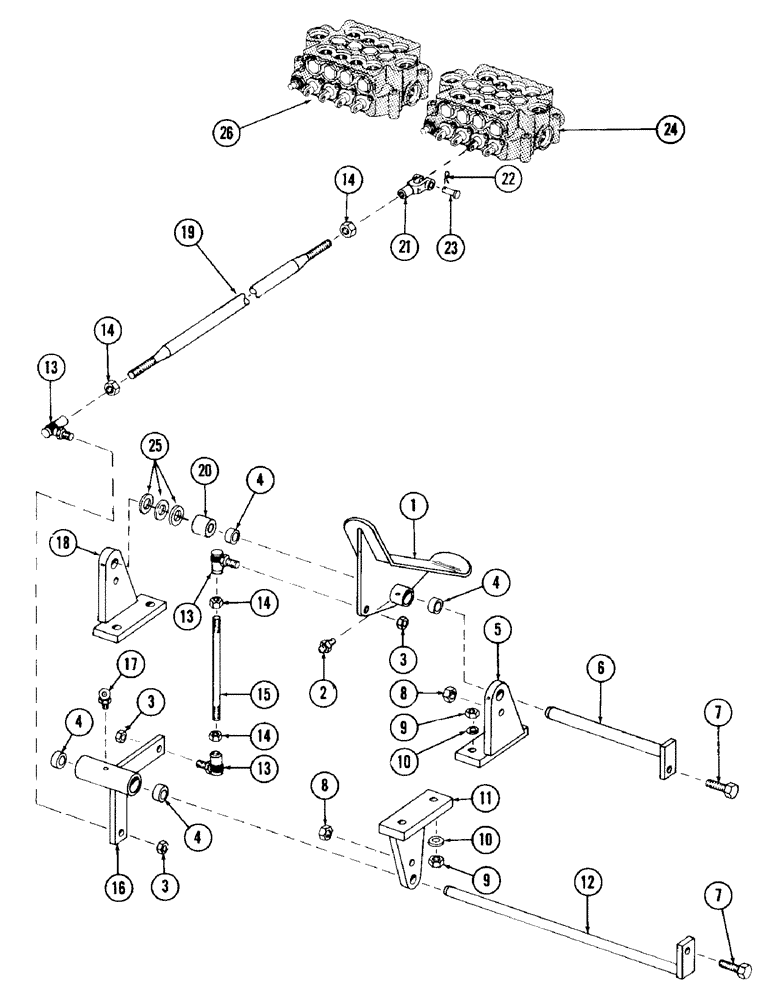

Запчасти Case 980 (168) - LEFT TRACK CONTROL AND LINKAGE (04) - UNDERCARRIAGE

1

S504577

SPARE PART Left track control

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking - 3/8" x 24 NF

3шт.

4

A30586

NEEDLE BEARING

Needle

4шт.

5

S218947

SPARE PART

1шт.

6

S218965

SHAFT ASSY.

1шт.

7

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

8

131-2

NUT,1/4"-20, GB

2шт.

9

131-10

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 20 NC

4шт.

10

95-8

WASHER,1/2"

4шт.

11

S218939

SPARE PART

1шт.

12

S218961

SHAFT ASSY.

1шт.

13

S215594

BALL

JOINT

3шт.

14

25-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

15

S91681

ROD

Connecting

1шт.

16

S220217

SPARE PART

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

18

S218938

SPARE PART

1шт.

19

S220464

SPARE PART Connecting

1шт.

20

S91212

SPACER

1шт.

21

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

22

132-67

COTTER PIN,5/32" x 3/4"

1шт.

23

S10768

PIN

Clevis - 3/8" dia. x 1.016" grip length

1шт.

24

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 150)

1шт.

25

195-41

WASHER,5/8"

3шт.

26

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 152)

1шт.
