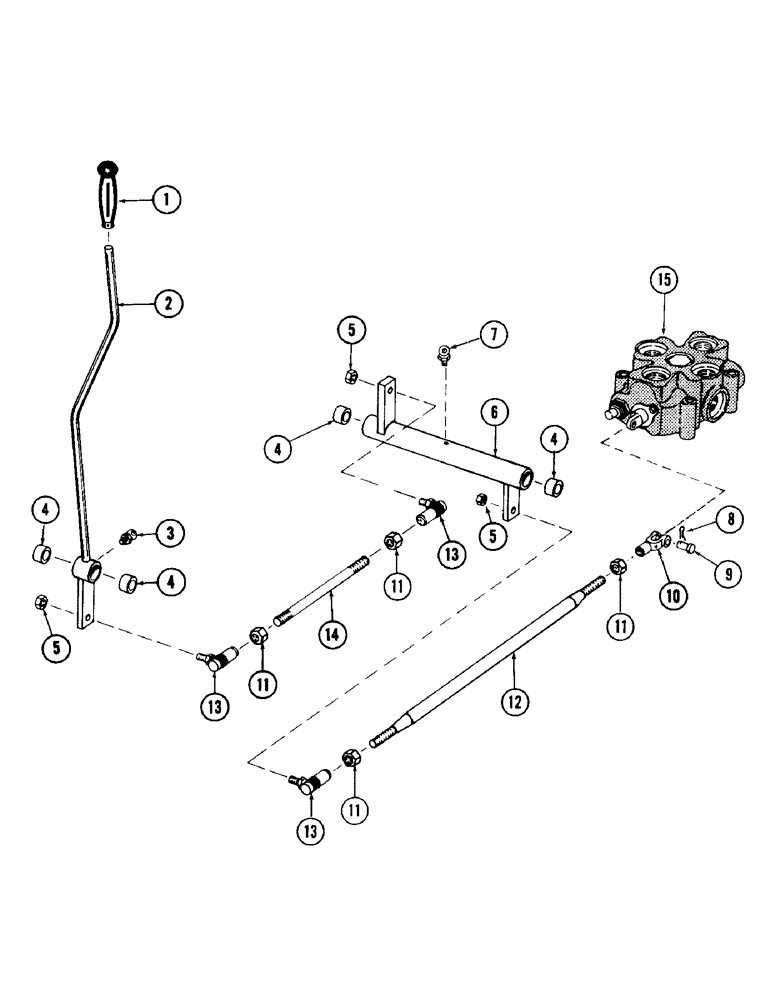

Запчасти Case 980 (122) - LEVELER CONTROL & LINKAGE (04) - UNDERCARRIAGE

1

S63411

HANDLE

GRIP

1шт.

2

S506213

SPARE PART Lever control

1шт.

3

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

1шт.

4

A30586

NEEDLE BEARING

Needle

4шт.

5

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking - 3/8"-24 NF

3шт.

6

S220216

SPARE PART

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

8

132-67

COTTER PIN,5/32" x 3/4"

1шт.

9

S10768

PIN

Clevis - 3/8" dia. x 1.016" grip length

1шт.

10

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

11

25-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

12

S219272

ROD, CONNECTING

SPARE PART

1шт.

13

S215594

BALL

JOINT

3шт.

14

S91680

SPARE PART

1шт.

15

REF

INSTRUCTION

VALVE, 1 spool main - (For breakdown, see figure 128)

1шт.
