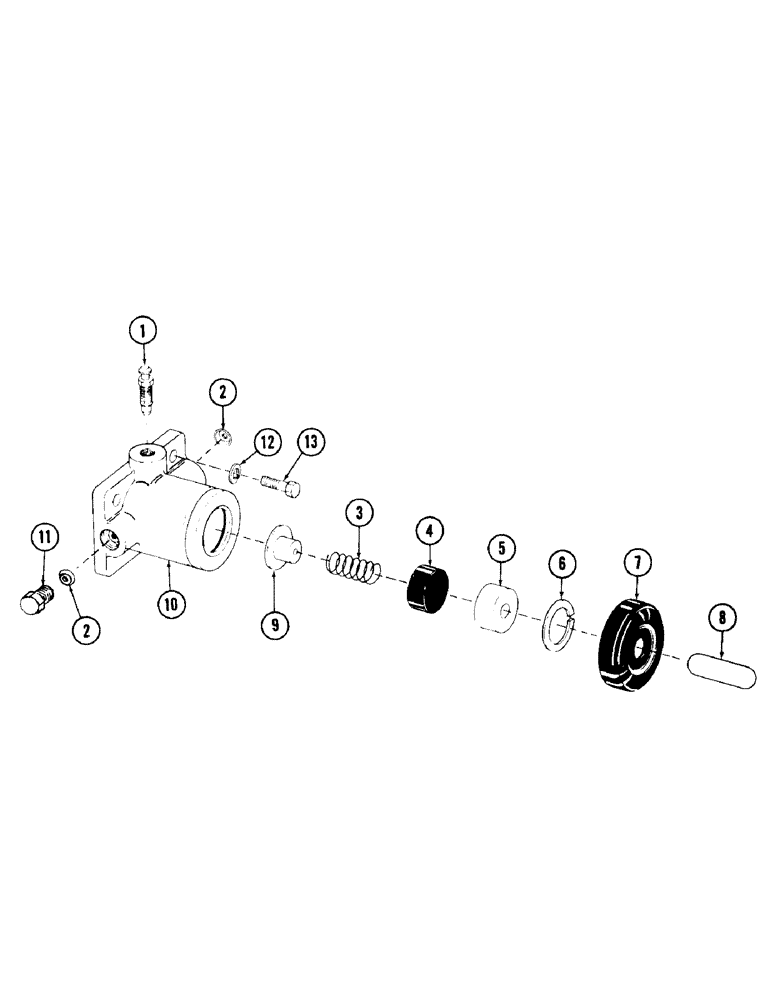

Запчасти Case 980 (120) - TRACK BRAKE CYLINDER (04) - UNDERCARRIAGE

a

S80167

PACKAGE,SERVICE

KIT, service (Consists of items 1, 2, 3, 4, 5, 6, 7 and 11)

1шт.

S232060

CYLINDER

track brake (Replaces S209804)

2шт.

1

SCREW, bleeder

2шт.

2

INSERT - 1/4" tube seat

2шт.

3

S108914

SPRING

return

1шт.

4

S108915

CUP

1шт.

5

PISTON

1шт.

6

RING, retainer - (In No. S80167 kit - do not use)

1шт.

7

BOOT

1шт.

8

S108918

ROD

push

1шт.

9

NSS

NOT SOLD SEPARAT

STOP, spring

1шт.

10

NSS

NOT SOLD SEPARAT

BODY

1шт.

11

PLUG - 1/4" tube seat

1шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

S605499

KIT

PACKAGE - (For one complete unit and 2 separate brakes)

1шт.

NSS

NOT SOLD SEPARAT

SHEET, instruction

1шт.

S96840

SPACER

SHIMS

8шт.

195-33

WASHER,1/2"

2шт.

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

S80167

PACKAGE,SERVICE

KIT, service

2шт.
