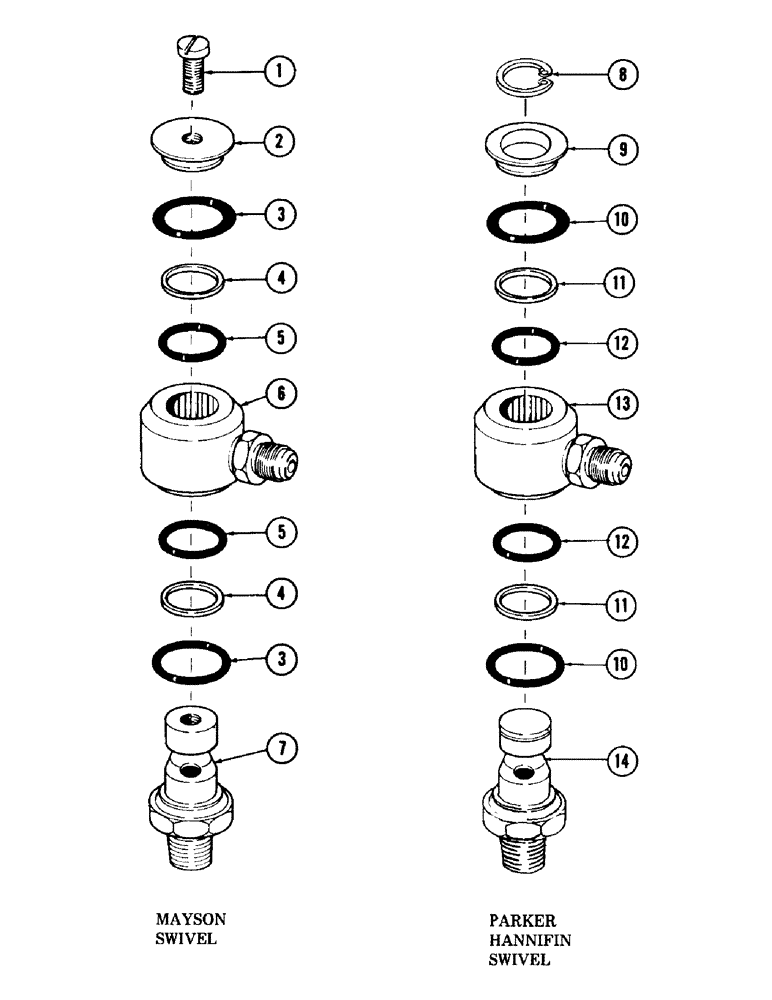

Запчасти Case 980 (116) - TRACK BRAKE SWIVEL (04) - UNDERCARRIAGE

S209351

FITTING

SWIVEL, track service brake (Mayson)

1шт.

1

177-95

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

machine - No. 10-32 NC x 3/8"

1шт.

2

S7989

CAP

grit

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - .737" ID x 9.37" OD

2шт.

4

S80212

WASHER

RING, back up

2шт.

5

A17692

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

"O" RING - .612" ID x .812" OD

2шт.

6

S80213

SLEEVE

1шт.

7

S79933

LINK

STEM

1шт.

S209351

FITTING

SWIVEL, track service brake (Parker Hannifin)

1шт.

8

RING, snap

1шт.

NOTE: When ordering parts specify Mayson (Screw mounted grit cap) or Parker Hannifin (Snap ring mounting grit cap) swivel.

1шт.

9

NSS

NOT SOLD SEPARAT

CAP, grit

1шт.

10

"O" RING

2шт.

NOTE: When ordering parts specify Mayson (Screw mounted grit cap) or Parker Hannifin (Snap ring mounting grit cap) swivel.

1шт.

11

RING, back up

2шт.

NOTE: When ordering parts specify Mayson (Screw mounted grit cap) or Parker Hannifin (Snap ring mounting grit cap) swivel.

1шт.

12

"O" RING

2шт.

NOTE: When ordering parts specify Mayson (Screw mounted grit cap) or Parker Hannifin (Snap ring mounting grit cap) swivel.

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

14

NSS

NOT SOLD SEPARAT

STEM

1шт.

S95177

KIT

service (Consists of items 8, 10, 11, 12)

1шт.

NOTE: When ordering parts specify Mayson (Screw mounted grit cap) or Parker Hannifin (Snap ring mounting grit cap) swivel.

1шт.
