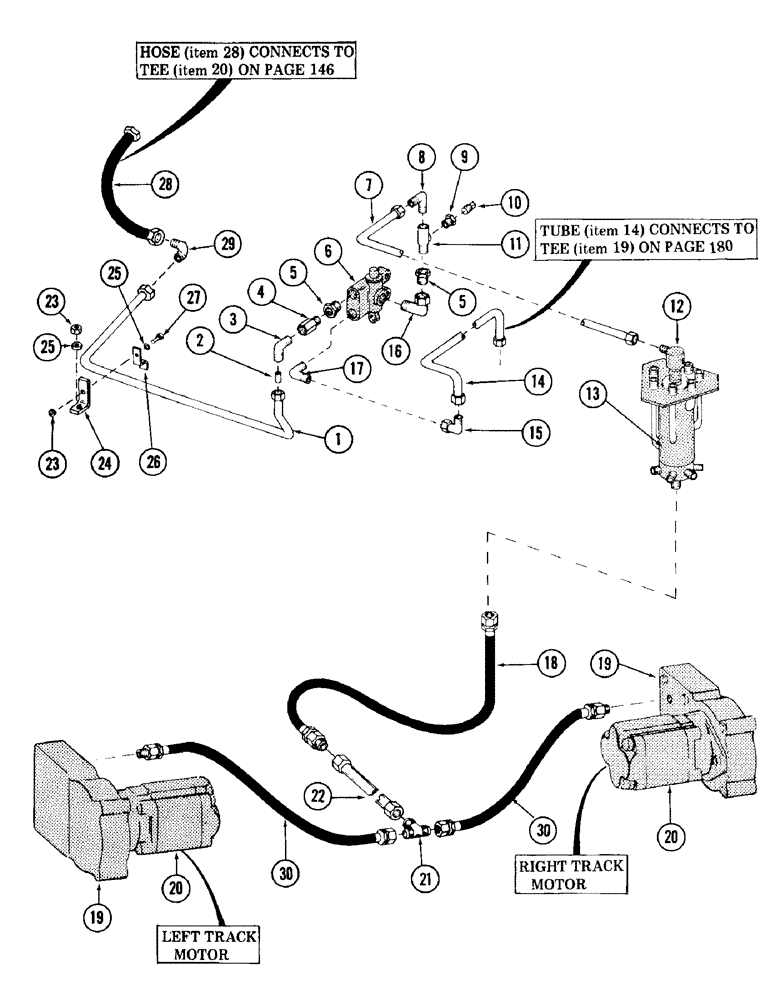

Запчасти Case 980 (112) - TRACK BRAKE HYDRAULICS (04) - UNDERCARRIAGE

1

S220518

SPARE PART LINE, hydraulic 0.375" OD

1шт.

2

S89669

VALVE

REGULATOR, flow

1шт.

3

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Flared - (1/2" tube - 3/4" male x 3/4" male)

1шт.

4

S78869

VALVE

Check

1шт.

5

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING- 1/2" NPT male x 3/8" NPT female

2шт.

6

REF

INSTRUCTION

VALVE, track brake (For breakdown, see figure 110)

1шт.

7

S220385

SPARE PART LINE, hydraulic 0.375" OD x 7.25, 14.25" L

1шт.

8

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

Flared - (3/8" tube - 9/16" male x 3/8" male)

1шт.

9

221-1085

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING - 3/8" NPT male x 1/8" NPT female

1шт.

10

221-1661

PLUG

Pipe - 1/8" - 27 NPT

1шт.

11

217-1063

TEE,3/8" - 18 Female x 3/8" - 18 Male Run

3/8" NPT female x 3/8" NPT male x 3/8" NPT female

1шт.

12

REF

INSTRUCTION

SWIVEL, inner - (For breakdown, see figure 114)

1шт.

13

REF

INSTRUCTION

SWIVEL, seven port hydraulic (For breakdown, see figure 174)

1шт.

14

S220386

TUBE,0.375" OD

LINE, hydraulic

1шт.

15

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8" tube

1шт.

16

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

1/2" NPT male x 1/2" NPT female

1шт.

17

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

Flared (3/8" tube) - 9/16" male x 1/2" female

1шт.

18

S401727

HOSE ASSY.

High pressure - 1/4" ID x 30" long

1шт.

19

REF

INSTRUCTION

BRAKE, track drive - (For breakdown, see figure 118)

2шт.

20

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see figure 178)

2шт.

21

218-591

TEE,7/16"-20, 37 Degree

1шт.

22

S211641

SPARE PART 0.25" OD x 15.5, 2" L

1шт.

23

131-6

LOCK NUT,3/8"-16, GC

2шт.

24

S93424

ANGLE

SPARE PART

1шт.

25

95-25

WASHER, flat - 3/8"

2шт.

26

S64985

CLAMP

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

28

S77121

HOSE

High pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

1шт.

29

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

Flared (3/8" tube - 9/16" - 18 male x 9/16" - 18 male)

1шт.

30

S401729

HOSE

High pressure - 1/4" ID x 38" long

2шт.
