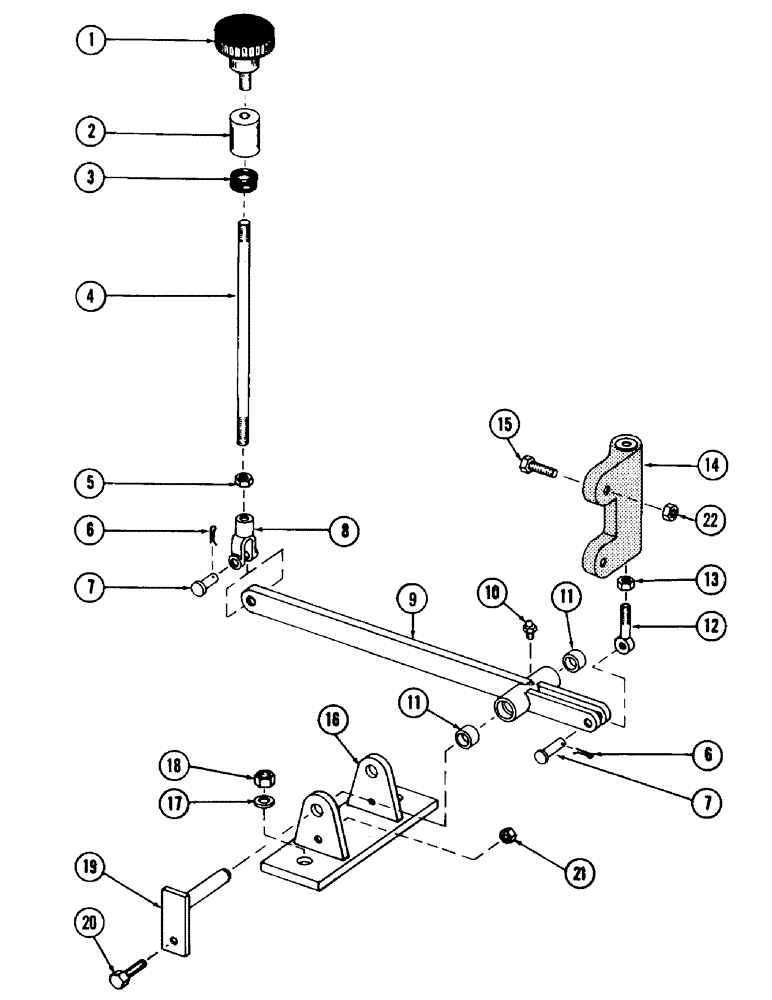

Запчасти Case 980 (108) - TRACK BRAKE VALVE CONTROL AND LINKAGE (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

KNOB - (For breakdown, see page 110)

1шт.

2

S93329

COUPLING

1шт.

3

S68002

GROMMET,7/16" ID x 11/16" Groove Dia

1шт.

4

S93328

SPARE PART

1шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

6

132-46

COTTER PIN,1/8" x 3/4"

2шт.

7

141-210

PIN, clevis - 5/16" dia. x .953" grip length

2шт.

8

S85426

YOKE

UNIVERSAL JOINT YOKE

1шт.

9

S220300

SPARE PART LINK, connecting

1шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

11

A30586

NEEDLE BEARING

Needle

2шт.

12

S90657

SPARE PART Eye

1шт.

13

25-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

14

REF

INSTRUCTION

VALVE, track brake - (For breakdown, see figure 110)

1шт.

15

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

16

S220309

SPARE PART Linkage mounting

1шт.

17

195-30

WASHER

Flat - 1/2"

2шт.

18

131-10

NUT,1/2"-13, GB

2шт.

19

S218962

SHAFT ASSY.

SPARE PART

1шт.

20

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

21

131-2

NUT,1/4"-20, GB

1шт.

22

131-4

LOCK NUT,5/16"-18, GB

2шт.
