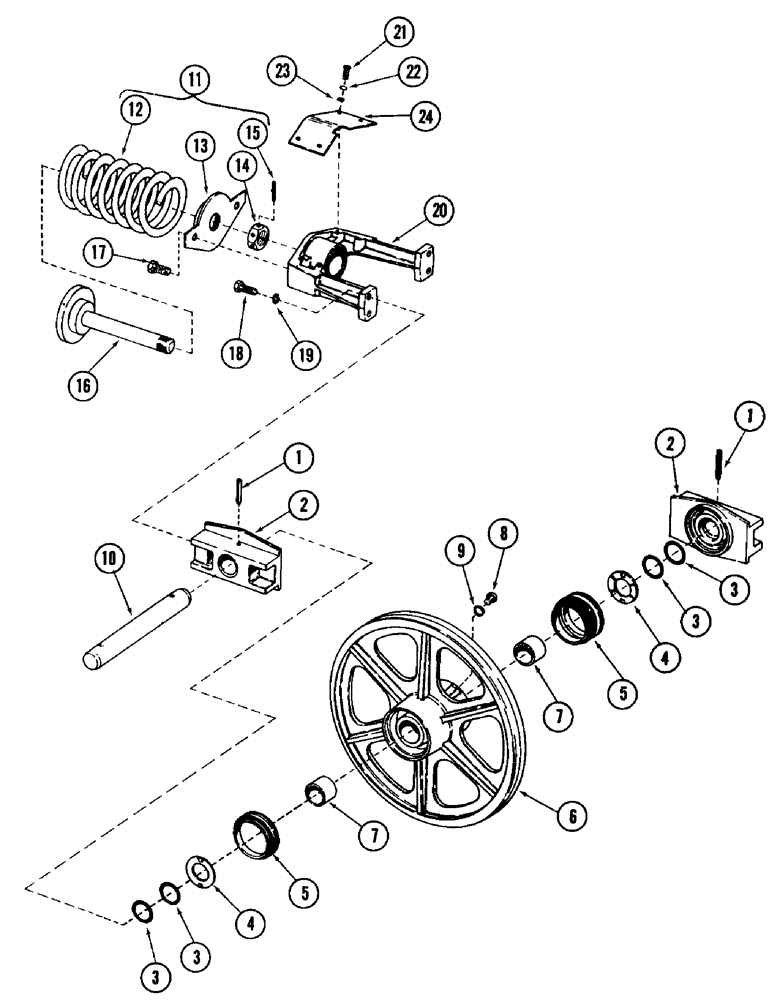

Запчасти Case 980 (102) - IDLER WHEEL AND TRACK ADJUSTER (04) - UNDERCARRIAGE

S504106

FRONT IDLER

WHEEL, idler

2шт.

1

138-210

LOCK PIN,1/2" x 3", Slotted

PIN, roll - 33/64" dia. x 3" long

2шт.

2

S600594

BLOCK

guide

2шт.

3

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD

4шт.

4

S78702

WASHER

2шт.

5

S209139

SEAL

2шт.

6

S504107

RIM

WHEEL, idler

1шт.

7

S78703

BUSHING

2шт.

8

87035062

PLUG,Hex, 1/2"-20 ORB

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .414" ID x .558" OD

1шт.

10

S78699

SHAFT

idler

1шт.

11

S504108

SPRING

ASSEMBLY

2шт.

12

S215129

SPRING

1шт.

13

S215128

LARGE PLATE

PLATE, end

1шт.

14

S87010

NUT

- 1-1/2" - 6 NC

1шт.

15

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, roll - 1/4" dia. x 1-7/8" long

1шт.

16

S215127

GUIDE

1шт.

17

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

S600551

YOKE

idler

2шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

4шт.

24

S504059

COVER

yoke

2шт.
