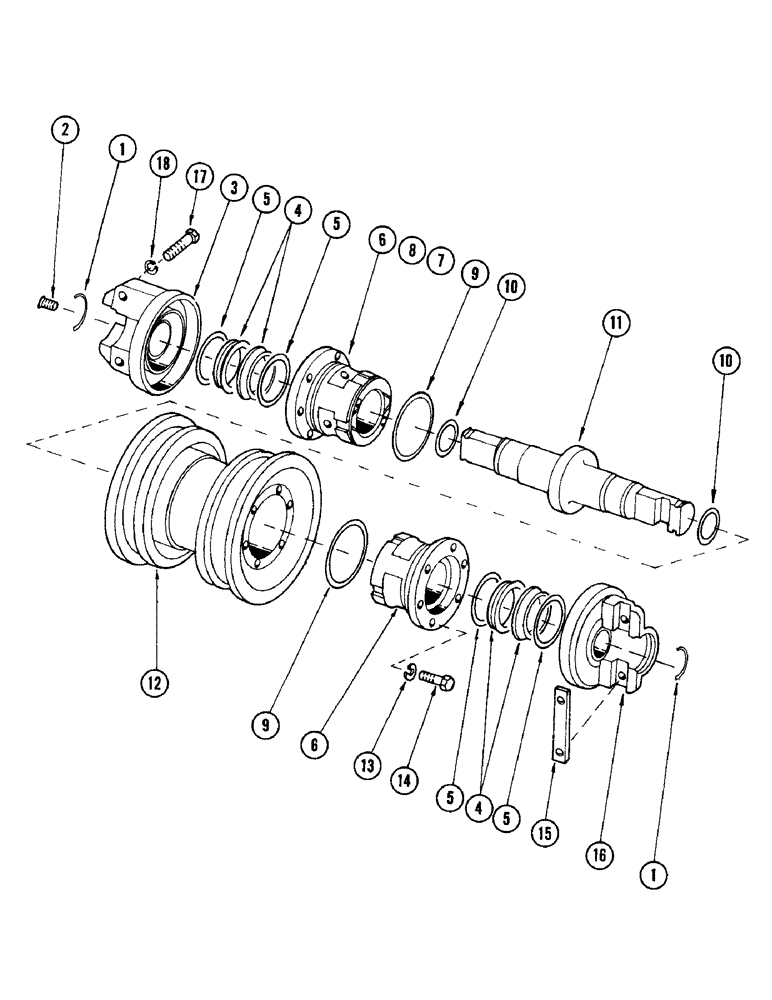

Запчасти Case 980 (101A) - DOUBLE FLANGE TRACK ROLLER, (USED ON UNITS WITH SERIAL NUMBER 6203128 AND UP) (04) - UNDERCARRIAGE

S507721

ROLLER

track

4шт.

1

S89317

RING, LOCKING

RING, lock

2шт.

2

S87854

PLUG

oil filler

1шт.

3

S89314

COLLAR

outer

1шт.

4

S95098

SEAL

GROUP

2шт.

5

S97896

RING

4шт.

6

S97843

BUSHING

ASSEMBLY

2шт.

7

S97897

BUSHING

inner

2шт.

8

S89318

PIN

4шт.

9

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL

2шт.

10

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL

2шт.

11

S89376

SHAFT

1шт.

12

S97793

RIM

1шт.

13

92-6

LOCK WASHER,3/8"

12шт.

14

S87457

CAPSCREW

CPSW - 3/8" - 16 NC x 1-1/8"

12шт.

15

S89310

LOCK

1шт.

16

S89309

COLLAR

inner

1шт.

17

S97894

CAPSCREW

CPSW

4шт.

18

S97895

WASHER

4шт.
