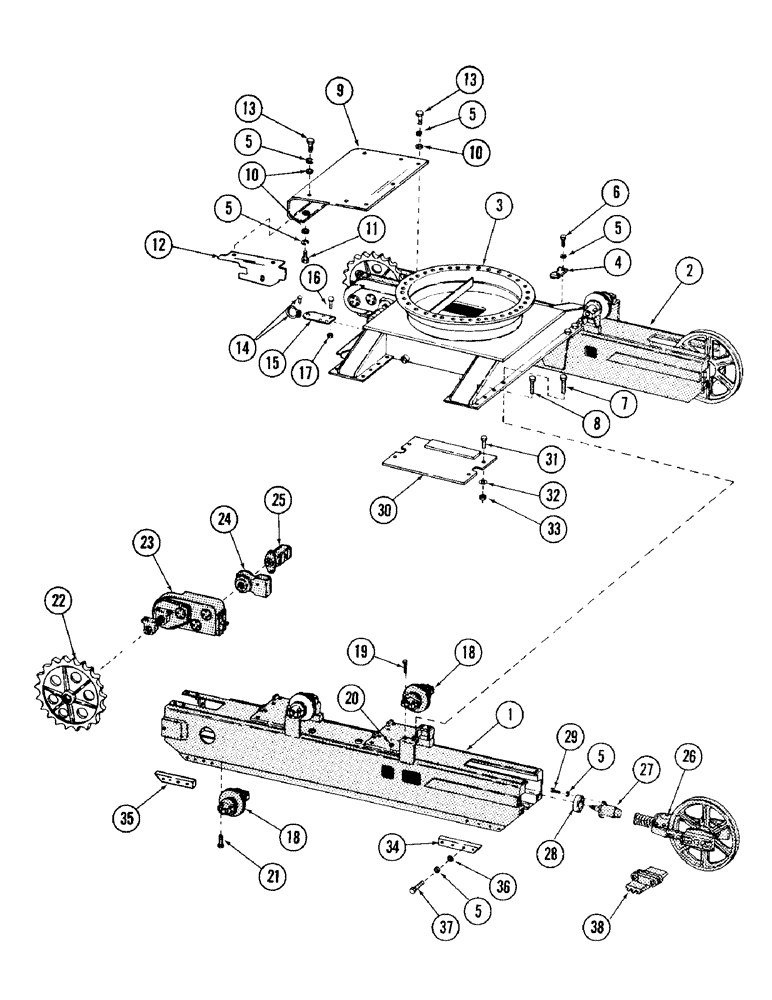

Запчасти Case 980 (092) - CRAWLER UNDERCARRIAGE (04) - UNDERCARRIAGE

1

S953320

SPARE PART Track - (RH)

1шт.

2

S953401

SPARE PART Track - (LH)

1шт.

3

S604735

SPARE PART Bearing - (Replaced by figure 88 when leveler is used)

4шт.

4

S209072

SPARE PART Track adjusting

4шт.

5

92-8

LOCK WASHER,1/2"

57шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

11шт.

7

26-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 8

16шт.

8

26-1428

BOLT,Hex, 7/8" - 9 x 1-3/4", Gr 8

16шт.

9

S506964

SPARE PART Motor

1шт.

10

S95569

WASHER

Flat - 1/2"

11шт.

11

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

12

S222538

SPARE PART SHIELD - (RH) - Illustrated

1шт.

S222539

SPARE PART SHIELD - (LH) - Not illustrated

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

14

S100742

SHACKLE

Round pin - (Optional)

1шт.

15

S209710

PLATE

Draw bar - (Optional)

1шт.

16

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

17

25-1012

NUT,3/4"-10, G5

4шт.

18

REF

INSTRUCTION

ROLLER, track - (For breakdown, see figure 100)

24шт.

19

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

20

131-460

LOCK NUT,5/8"-11

16шт.

21

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

80шт.

22

S221928

SPROCKET ASSY.

WHEEL, sprocket drive

2шт.

23

REF

INSTRUCTION

TRANSMISSION, final drive - (LH) - (For breakdown, see figure 96)

1шт.

REF

INSTRUCTION

TRANSMISSION, final drive - (RH) - (For breakdown, see figure 96)

1шт.

24

REF

INSTRUCTION

BRAKE, track drive - (For breakdown, see figure 118)

2шт.

25

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see figure 178)

2шт.

26

REF

INSTRUCTION

TRACK ADJUSTER GROUP - (For breakdown, see figure 102)

2шт.

27

REF

INSTRUCTION

CYLINDER, track adjustment - (For breakdown, see figure 104)

2шт.

28

S79135

SPACER

2шт.

29

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

30

S213950

SPARE PART PLATE, swivel (Optional)

1шт.

31

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

32

95-9

WASHER

Flat - 5/8"

8шт.

33

131-79

SPARE PART Self locking - 5/8" - 11 NC

8шт.

34

S215812

BAR

SPARE PART Wear - (RH)

4шт.

35

S215813

BAR

SPARE PART Wear - (LH)

4шт.

36

S86132

WASHER

Flat - 1/2"

32шт.

37

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

32шт.

38

REF

INSTRUCTION

TRACK ASSEMBLY - (For breakdown, see figure 106)

2шт.
