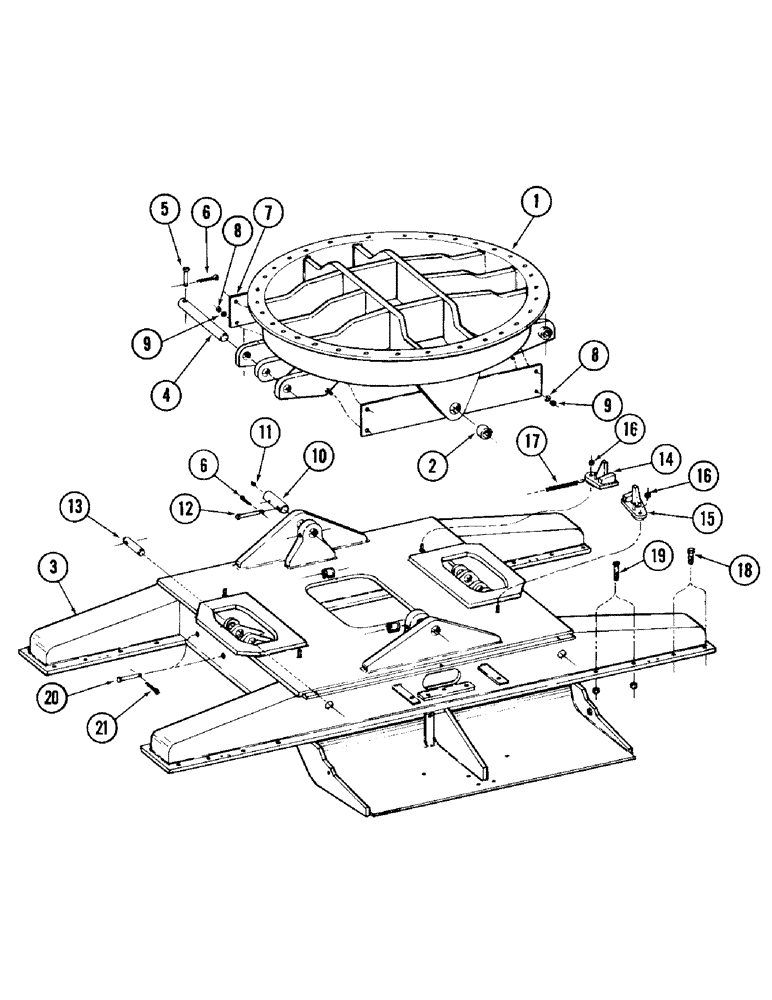

Запчасти Case 980 (088) - TURNTABLE LEVELER (04) - UNDERCARRIAGE

1

S603820

LEVELER, upper

1шт.

2

S202192

BUSHING

2шт.

3

S953322

BASE, leveler

1шт.

4

S85708

PIN

cylinder to leveler ring

2шт.

5

141-340

X

PIN, clevis - 1/2" x 3.766" grip length

2шт.

6

132-45

COTTER PIN,1/8" x 5/8"

PIN, cotter - 1/8" x 1"

4шт.

7

S214790

COVER, motor

2шт.

8

131-206

NUT,3/8"-16

NUT, self locking - 3/8" x 16 NC

8шт.

9

S94625

WASHER

flat - 3/8"

8шт.

10

S85739

PIN

leveler, Serial Range: ring-base

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/4" NPT

2шт.

12

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 4.516" grip length

2шт.

13

S87086

PIN

cylinder to leveler base

4шт.

14

S213942

STOP, leveler ring

2шт.

15

S213941

STOP, leveler ring

2шт.

16

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

4шт.

17

S64335

SPRING, stop

4шт.

18

26-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 8

CPSW - 7/8" - 9 NC x 3"

16шт.

19

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

CPSW - 7/8" NC x 2"

16шт.

20

141-339

X

PIN, clevis - 1/2" x 3.266" grip length

4шт.

21

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

4шт.
