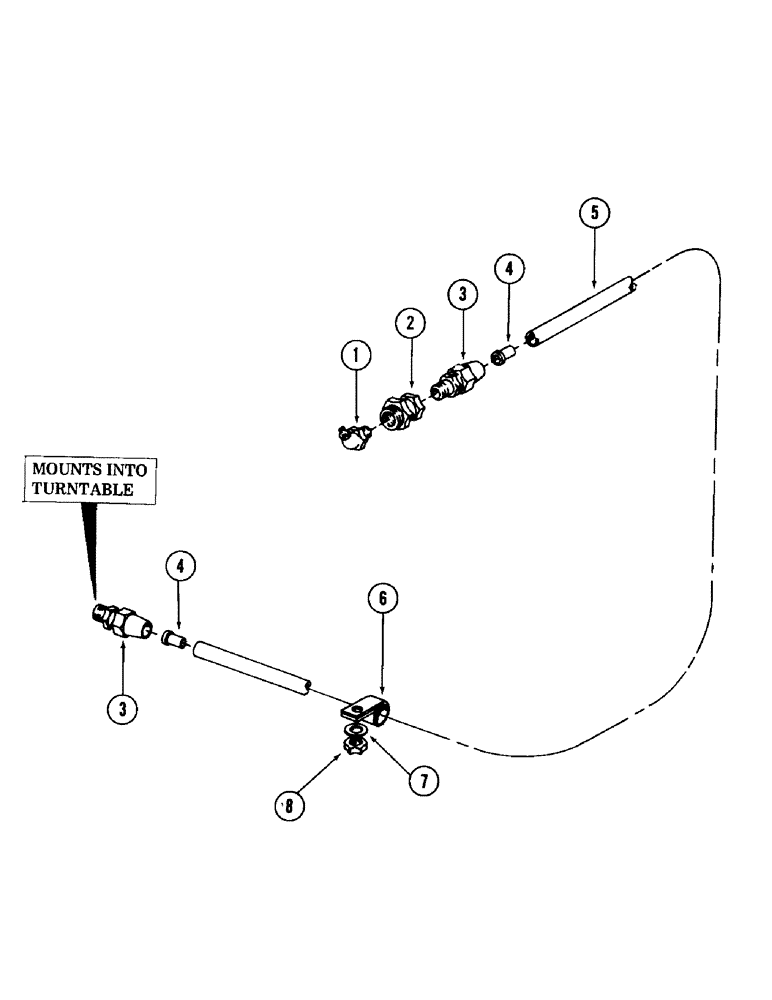

Запчасти Case 980 (087A) - TURNTABLE BEARING LUBRICATION LINE, (USED WITH SERIAL NUMBER 6203544 AND AFTER) (04) - UNDERCARRIAGE

1

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, grease - 1/8" NPT x 45 degrees

1шт.

2

217-226

COUPLING

bulkhead - 1/8" NPT female x 1-1/2" long

1шт.

3

222-1839

FITTING,17/32"-24 x 1/8" NPT

UNION - 3/8" tube x 1/8" NPT male

2шт.

4

222-2446

INSERT,1/4" Tube

SLEEVE - (For 3/8" OD nylon tube)

2шт.

5

S85503

TUBE,37.5" OD

nylon (Bulk) - 1 piece, 3/8" OD x 47" long

1шт.

6

S64985

CLAMP

1шт.

195-25

WASHER,3/8"

flat - 3/8"

1шт.

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

1шт.
