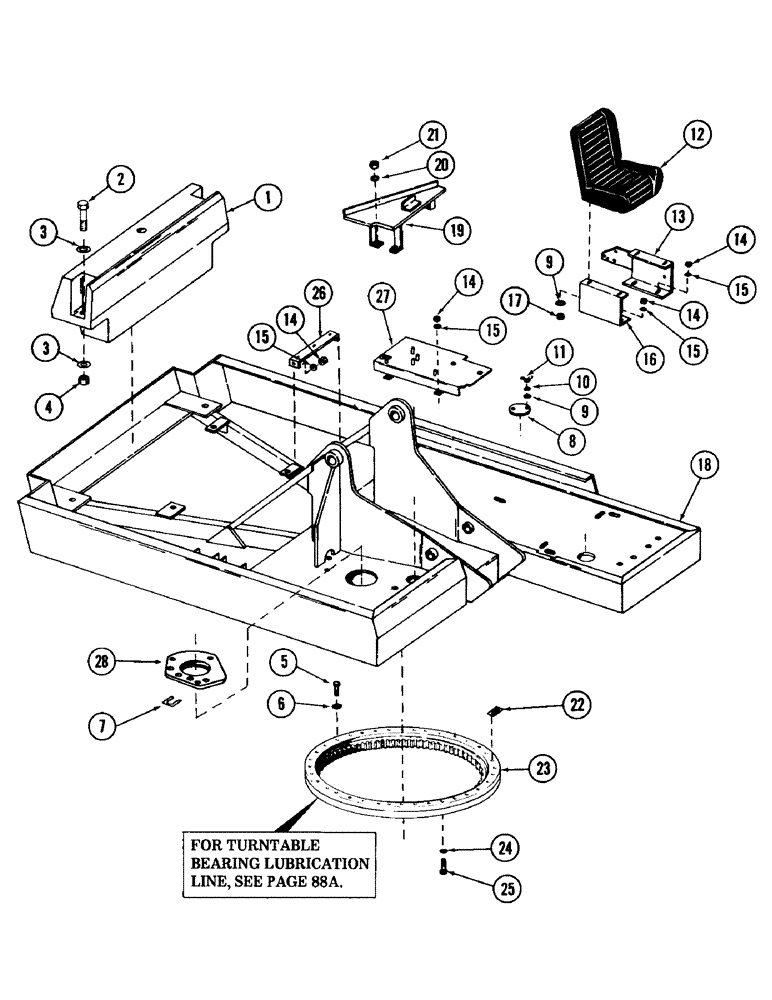

Запчасти Case 980 (086) - TURNTABLE BEARING COUNTERWEIGHT & RELATED PARTS (04) - UNDERCARRIAGE

1

S604051

COUNTERWEIGHT

1шт.

2

13-1684

CPSW - 1" - 8 NC x 5-1/4" Hex, 1"-8 x 5 1/4", G5

2шт.

3

95-16

WASHER,1 1/16" x 2 1/2" x .164"

plain - 1-1/16" ID

4шт.

4

25-1016

NUT,1"-8, G5

2шт.

5

S94644

SPECIAL BOLT,3/4" - 10 x 2.25"

CPSW - bearing to turntable - 3/4" - 10 NC x 2-1/4" (Special DMC capscrews)

33шт.

6

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

hardened

33шт.

7

S84889

SHIM,.003" Thk

Reducer plate to turntable .003" Thk

1шт.

S84890

SHIM,.007" Thk

Reducer plate to turntable .007" Thk

1шт.

S77916

SHIM,.005" Thk

Reducer plate to turntable .005" Thk

1шт.

S77917

SHIM,.010" Thk

Reducer plate to turntable .010" Thk

1шт.

SS77918

SHIM - reducer plate to turntable - .015"

1шт.

S77919

SHIM,.030" Thk

Reducer plate to turntable .030" Thk

1шт.

S77920

SHIM,.060" Thk

Reducer plate to turntable .060" Thk

1шт.

8

S76664

COVER

2шт.

9

195-25

WASHER,3/8"

flat - 3/8"

8шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

129-410

WING NUT,3/8"-16

NUT, wing - 3/8" - 16 NC

4шт.

12

S220432

NO LONGER SERVICED

SEAT, operators

1шт.

13

S506117

CHANNEL, seat mounting - left hand

1шт.

14

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

8шт.

15

95-8

WASHER,1/2"

flat 1/2"

8шт.

16

S219432

CHANNEL, seat mounting - right hand

1шт.

17

131-470

LOCK NUT

NUT, self locking - 5/16" - 18 NC

4шт.

18

S953318

TURNTABLE ASSEMBLY - (Used on units with serial number 6203000 thru 6203568)

1шт.

S606624

TURNTABLE ASSEMBLY - (Used on units with serial number 6203569 and after)

1шт.

19

S506187

GUIDE, window storage

1шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

2шт.

21

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

2шт.

22

S84889

SHIM,.003" Thk

Bearing to turntable .003" Thk

1шт.

S84890

SHIM,.007" Thk

Bearing to turntable .007" Thk

1шт.

S77916

SHIM,.005" Thk

Bearing to turntable .005" Thk

1шт.

S77917

SHIM,.010" Thk

Bearing to turntable .010" Thk

1шт.

S77918

SHIM,.015" Thk

Bearing to turntable .015" Thk

1шт.

S77919

SHIM,.030" Thk

Bearing to turntable .030" Thk

1шт.

S77920

SHIM,.060" Thk

Bearing to turntable .060" Thk

1шт.

23

S508669

BEARING ASSY

BEARING, turntable

1шт.

24

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

hardened

36шт.

25

S94645

SPECIAL BOLT,3/4" - 10 x 2"

CPSW - bearing to flange - 3/4" - 10 NC x 2" (Special DMC capscrew)

36шт.

26

S68667

BRACKET, hydraulic line clamp mounting

1шт.

27

S505720

PLATE

1шт.

28

S506965

SUPPORT

PLATE, swing reducer mounting

1шт.
