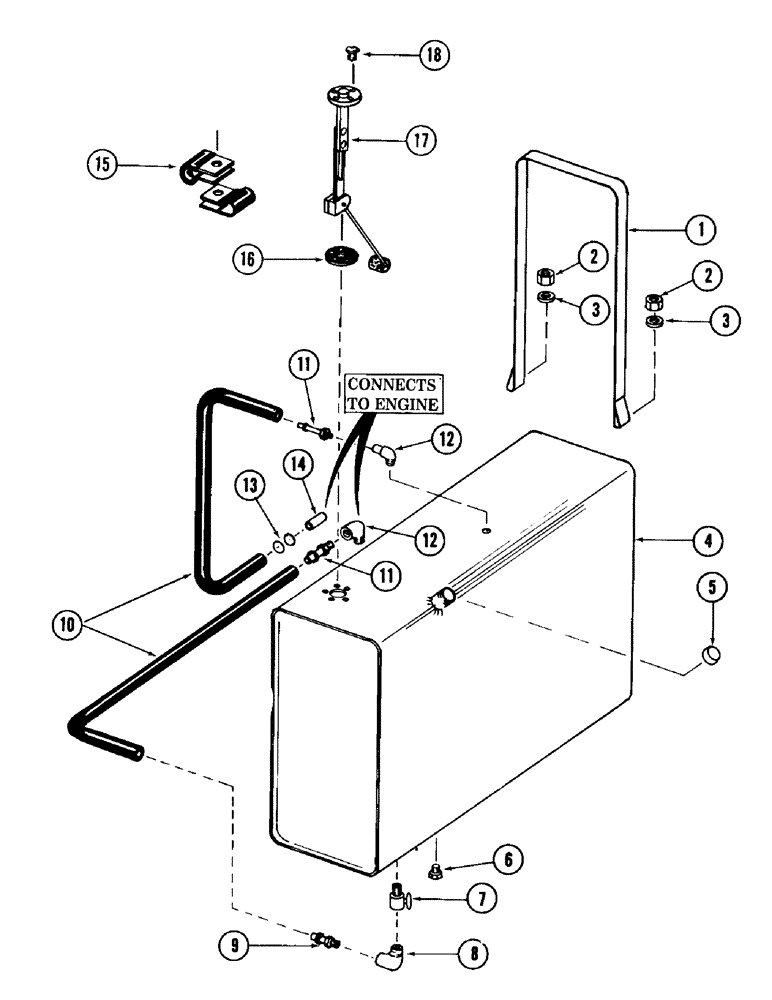

Запчасти Case 980 (066) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1

S93863

STRAP

fuel tank mounting

2шт.

2

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

8шт.

3

195-25

WASHER,3/8"

flat - 3/8"

8шт.

4

S502212

TANK

fuel

1шт.

5

A18870

FILLER CAP

CAP, fuel tank

1шт.

Ref #5A - A32120 Keyed Cap (will also work) 06/07/96

1шт.

6

221-1662

PLUG

fuel tank drain

1шт.

7

217-81

VALVE

shut off

1шт.

8

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

1шт.

9

220-7

FITTING

END, hose

3шт.

10

HOSE - 3/8" ID x 1-5" use A21562 listed below

2шт.

11

220-3

FITTING

END, hose

1шт.

12

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

2шт.

13

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP

2шт.

14

S209418

LINE, fuel - return line to engine adapter

1шт.

15

49885

CLAMP

hose

3шт.

16

S49745

GASKET

GASKET, fuel gauge sending unit

1шт.

17

S502600

SENDER UNIT

SENDING UNIT, fuel gauge

1шт.

18

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

machine - No. 10-32 NF x 3/4"

5шт.

A21562

HOSE,0.38" ID x 25.00"

0.38" ID x 25.00'

1шт.
