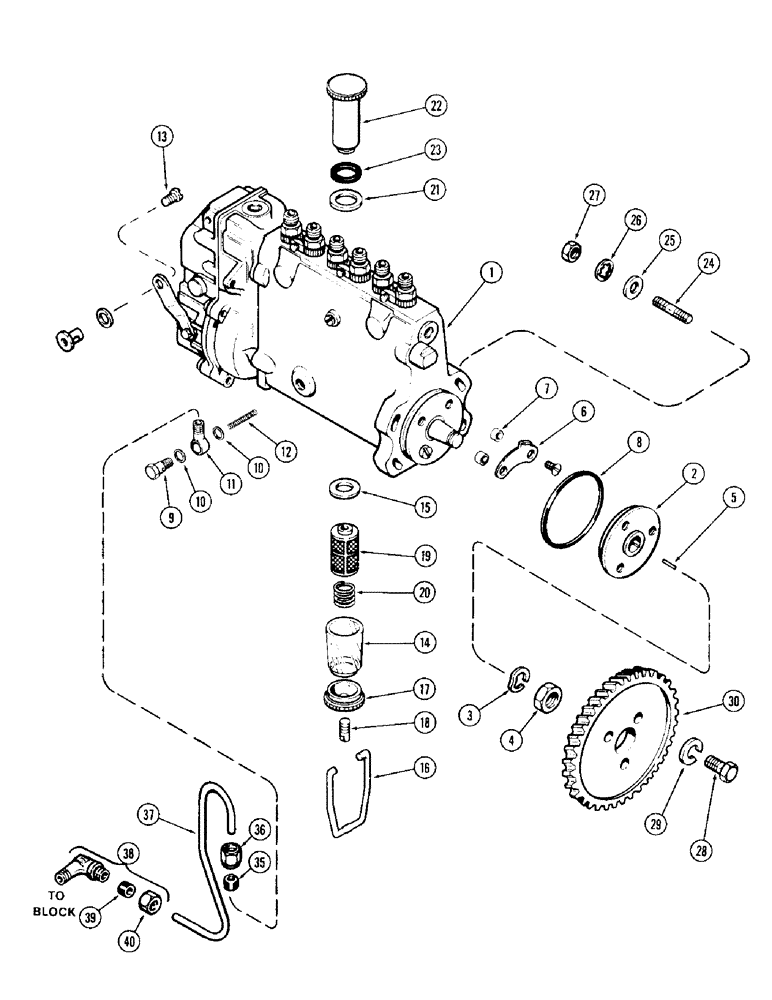

Запчасти Case 980 (037A) - FUEL INJECTION PUMP, (504BDT) DIESEL ENGINE, WITH LUBE TUBE ON INSIDE OF PUMP (02) - FUEL SYSTEM

1

A66038

PUMP, FUEL INJECTION

PUMP ASSY - fuel injection (2200 RPM)

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub retaining

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER - hub adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - (2-61/64 x 3-3/16 x 1/8")

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting, copper

2шт.

11

A25191

FITTING

- oil tube to pump (Banjo type)

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A44259

SCREW

- lock, pump stop control cable

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAIL NUT - bowl seat

1шт.

18

A43349

STUD

- ball nut retaining

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- hand primer pump (Copper)

2шт.

22

A43343

CARTRIDGE

PUMP - hand primer

1шт.

23

A45342

GASKET

- primer pump seal (Rubber) (Replaces A44761)

1шт.

24

A58689

STUD

- (3/8" N.C. x 1-7/8")

4шт.

25

A57470

WASHER

- (13/32 x 11/16 x 16 ga.)

4шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

27

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

29

92-6

LOCK WASHER,3/8"

3шт.

30

A58693

GEAR

- drive, injection pump

1шт.

35

222-102

SLEEVE,1/4" Tube

1шт.

36

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

1шт.

37

A58717

TUBE

- oil, Serial Range: gallery-pump

1шт.

38

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY - (For 1/4" tube), tube to block

1шт.

39

222-102

SLEEVE,1/4" Tube

1шт.

40

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

1шт.
