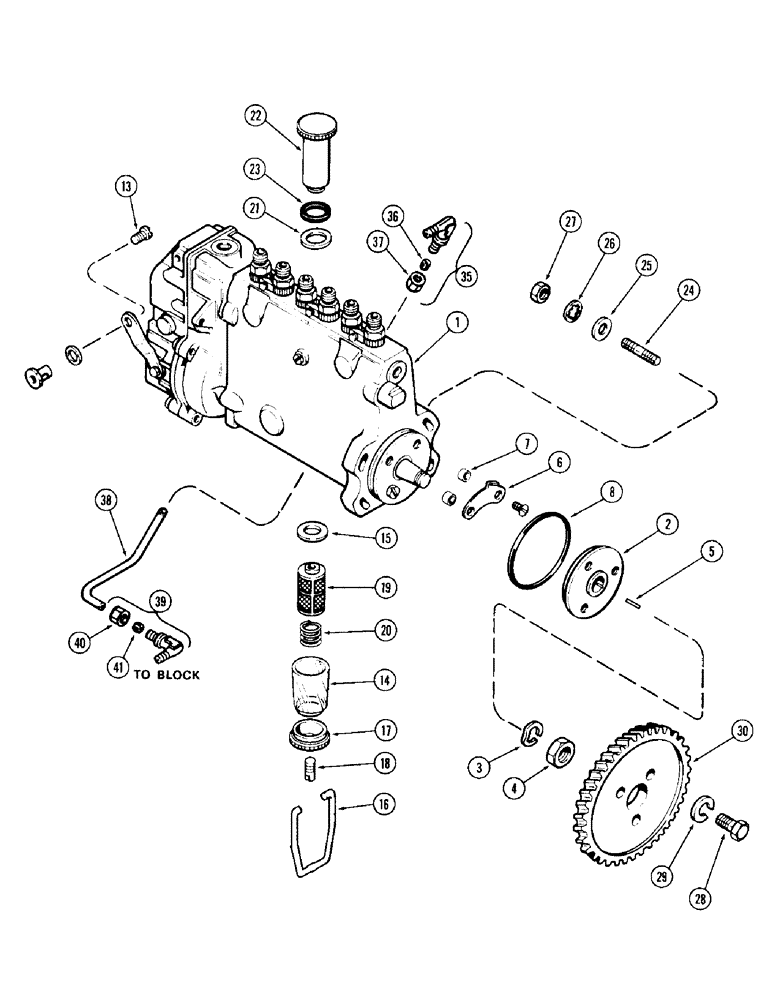

Запчасти Case 980 (036) - FUEL INJECTION PUMP, (504BDT) DIESEL ENGINE, WITH LUBE TUBE ON OUTSIDE OF PUMP (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A138064
PUMP, FUEL INJECTION
PUMP ASSY - fuel injection (2200 RPM)
1шт.
2
A41857
HUB
- pump drive
1шт.
3
A41851
LOCK WASHER
- lock, hub nut
1шт.
4
A41852
LOCK NUT
- hub retaining
1шт.
5
A41850
KEY
- hub to pump shaft
1шт.
6
A41858
INDICATOR
POINTER - hub adjustment
1шт.
7
A41859
BUSHING
SPACER - pointer
2шт.
13
A44259
SCREW
- lock, pump stop control cable
1шт.
14
A43347
BOWL
- filter
1шт.
15
A43346
GASKET
- bowl
1шт.
16
A43350
CLAMP
BAIL - bowl
1шт.
17
A43348
NUT
BAIL NUT - bowl seat
1шт.
18
A43349
STUD
- ball nut retaining
1шт.
19
A43344
FILTER, ELEMENT
ELEMENT - filter
1шт.
20
A43345
SPRING
- element retaining
1шт.
21
A43351
SEAL
- hand primer pump (Copper)
2шт.
22
A43343
CARTRIDGE
PUMP ASSY - hand primer
1шт.
23
A45342
GASKET
- primer pump seal (Rubber) (Replaces A44761)
1шт.
24
A142092
STUD
- 3/8" N.C. x 1-7/8" (Drilled) (For anti-tamper wire)
1шт.
24
A58689
STUD
- 3/8" N.C. x 1-7/8"
3шт.
25
A57470
WASHER
- 13/32 x 11/16 x 16 ga.
4шт.
26
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
27
25-126
SLOTTED NUT,3/8"-16, G5
NUT - 3/8" N.C. hex., sltd. (For anti-tamper wire)
1шт.
27
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
3шт.
28
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
3шт.
29
92-6
LOCK WASHER,3/8"
3шт.
30
A58693
GEAR
- drive, injection pump
1шт.
35
222-42
ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF
ASSY - pump to oil gallery tube
1шт.
36
222-102
SLEEVE,1/4" Tube
1шт.
37
87017024
TUBE NUT,1/2"-24
NUT - for 1/4" tube
1шт.
38
A136903
TUBE
- oil, Serial Range: gallery-pump
1шт.
39
222-43
ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF
- oil gallery to tube
1шт.
40
222-102
SLEEVE,1/4" Tube
1шт.
41
87017024
TUBE NUT,1/2"-24
NUT - for 1/4" tube
1шт.
Выбрано товаров: 35
