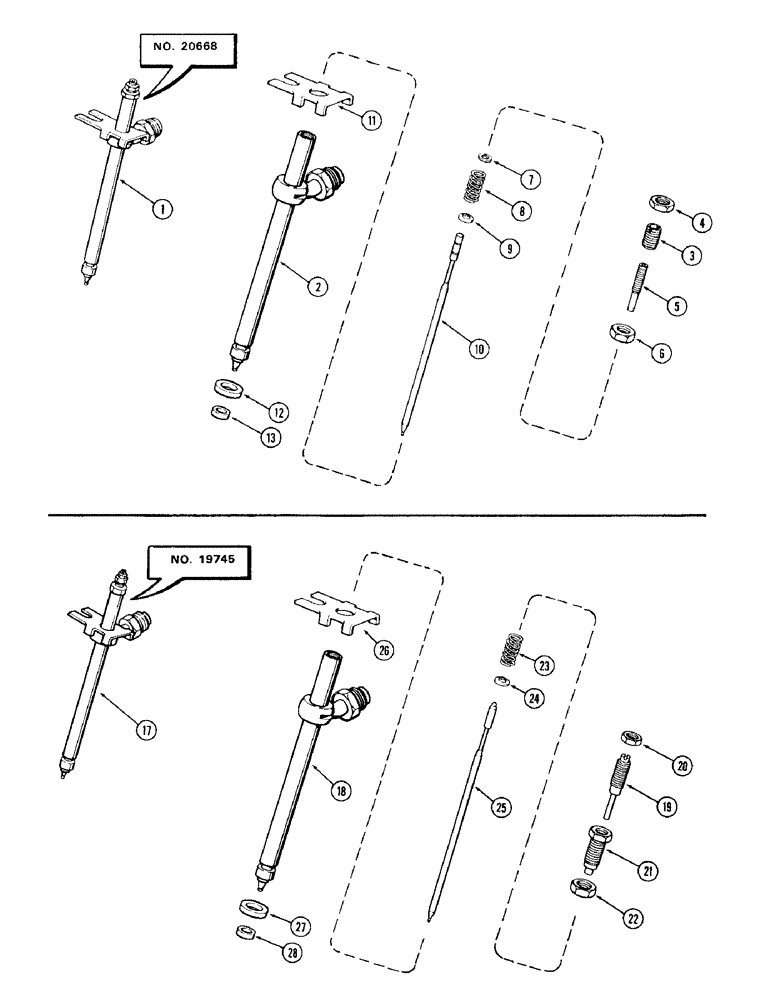

Запчасти Case 980 (032) - FUEL INJECTOR, (504BDT) DIESEL ENGINE, A138322 NOZZLE (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A138322
NOZZLE CAP
NOZZLE ASSY - injector (See note) (Stamped 20668 on body) (Red color code)
6шт.
A138322R
REMAN-INJECT NOZZLE
980
6шт.
A138322C
CORE-NOZZLE, INJECT
Return Number
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - nozzle
1шт.
3
A45293
ADJUSTMENT SCREW
SCREW - lift adjusting
1шт.
4
A43602
NUT
- lock, lift adjusting screw
1шт.
5
A45292
SCREW
- pressure adjusting
1шт.
6
A42424
LOCK NUT
- lock, pressure adjusting screw
1шт.
7
A45632
SHIM
SEAT - pressure spring, upper
1шт.
8
A45290
SPRING
- pressure adjusting (11/6" free length) (Red color code)
1шт.
9
A45289
SEAT
- pressure spring, lower
1шт.
10
NSS
NOT SOLD SEPARAT
VALVE - nozzle
1шт.
11
A41768
PLATE
- nozzle locating
1шт.
12
A41403
WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk
- nozzle body
1шт.
13
A41402
SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk
- carbon stop
1шт.
17
A62809
NOZZLE CAP
NOZZLE ASSY - fuel injection (See note) (Stamped 19745 on body) (Red color code), A62809
6шт.
A138322R
REMAN-INJECT NOZZLE
980 REMAN FOR NEW P/N A62809
6шт.
A138322C
CORE-NOZZLE, INJECT
Return Number
1шт.
18
NSS
NOT SOLD SEPARAT
BODY - nozzle, A62809
1шт.
19
A43599
ADJUSTMENT SCREW,#10 - 56 x 1.39"
SCREW - lift adjusting, A62809 nozzle
1шт.
20
A43602
NUT
- locking, lift screw, A62809 nozzle
1шт.
21
A43600
ADJUSTMENT SCREW,#10 - 56 x 0.68"
SCREW - pressure adjusting, A62809 nozzle
1шт.
22
A42424
LOCK NUT
- locking, pressure screw, A62809 nozzle
1шт.
23
A43601
SPRING
- nozzle pressure adjusting (1/2" free length) (Brown stripe color code), A62809
1шт.
24
A41401
SEAT
- spring, A62809 nozzle
1шт.
25
NSS
NOT SOLD SEPARAT
VALVE - nozzle, A62809
1шт.
26
A41768
PLATE
- nozzle locating, A62809
1шт.
27
A41403
WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk
- nozzle mounting, A62809
1шт.
28
A41402
SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk
- carbon stop, A62809 nozzle
1шт.
Выбрано товаров: 29
