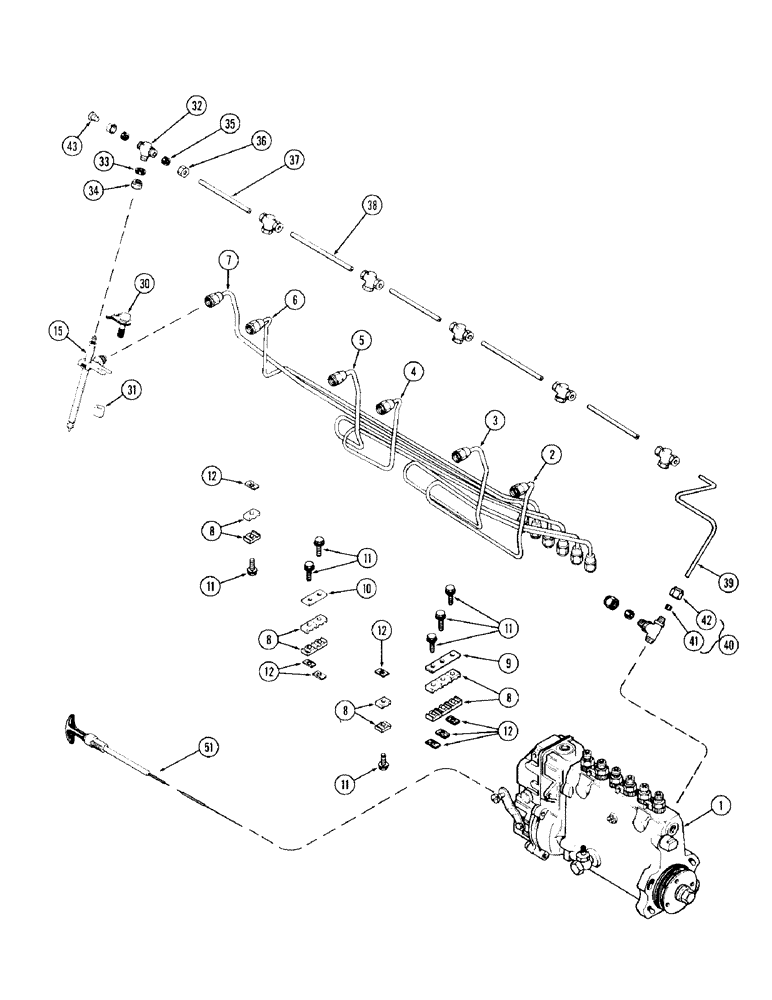

Запчасти Case 980 (030) - FUEL INJECTION SYSTEM, (504BDT) DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY - fuel injection (See figure 36)

1шт.

2

A58702

TUBE

ASSY - fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSY - fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSY - fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSY - fuel injection, #4 cylinder

1шт.

6

A58706

TUBE

ASSY - fuel injection, #5 cylinder

1шт.

7

A58707

TUBE

ASSY - fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

Injection tube

14шт.

9

A58708

PLATE

Injection tube bracket (6 line)

1шт.

10

A58710

PLATE

Injection tube bracket (4 line)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

Machine

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

7шт.

15

REF

INSTRUCTION

NOZZLE ASSY - fuel injection (See figure 32)

6шт.

30

A58695

CLAMP

ASSY - nozzle

6шт.

31

A58696

SPACER

SPACER - nozzle clamp

6шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSY - nozzle leak-off

6шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

Cap

6шт.

34

A58961

NUT

Cap

6шт.

35

222-102

SLEEVE,1/4" Tube

12шт.

36

87017024

TUBE NUT,1/2"-24

(For 1/4" tube)

12шт.

37

A58965

TUBE

Leak-off (4-5/8" long)

3шт.

38

A58964

TUBE

Leak-off (5-5/8" long)

2шт.

39

A58963

TUBE

Leak-off, #1, Serial Range: nozzle-valve

1шт.

40

A59097

VALVE

ASSY- check, leak-off (In injection pump)

1шт.

41

222-102

SLEEVE,1/4" Tube

2шт.

42

87017024

TUBE NUT,1/2"-24

(For 1/4" tube)

2шт.

43

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - leak-off boot

1шт.

51

S201620

CABLE

Shut-off, fuel injection pump

1шт.
