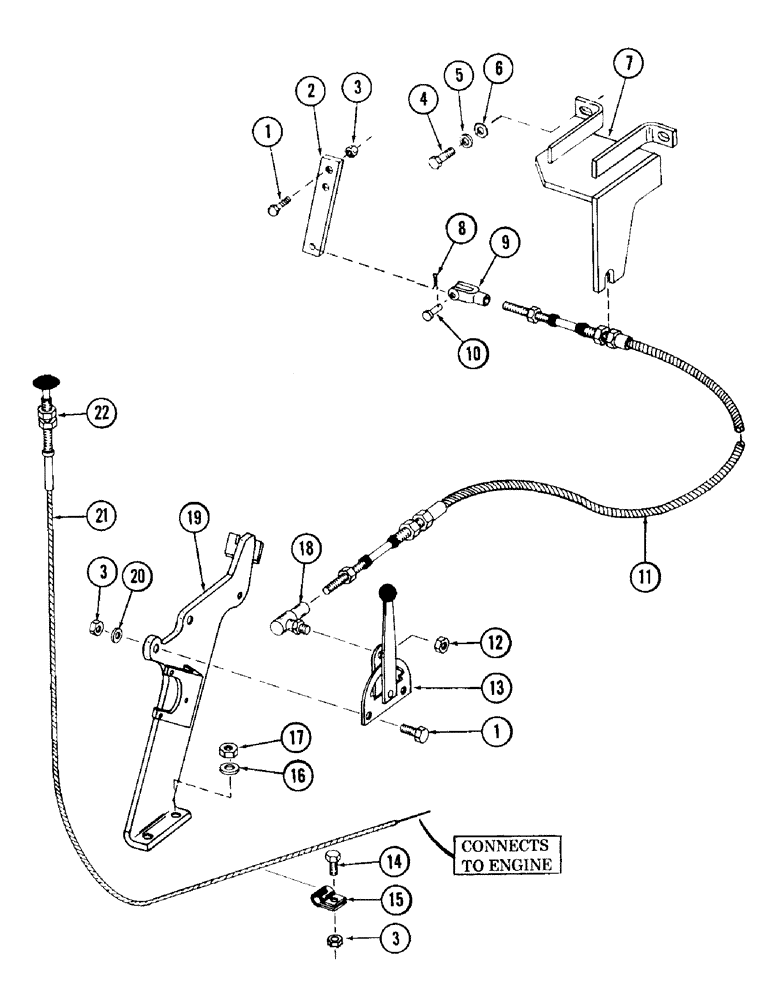

Запчасти Case 980 (068) - THROTTLE CONTROL (01) - ENGINE

1

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

2

S92444

BAR

LEVER, throttle control

1шт.

3

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

5шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

3шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

plain - 3/8"

2шт.

7

S505829

BRACKET

throttle control

1шт.

8

132-324

COTTER PIN,7/64" x 3/4"

Pin, Split (Cotter), 7/64" x 3/4"

1шт.

9

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE

1шт.

10

S10714

CLEVIS PIN

PIN, clevis - 1/4" dia. x .648" grip length

1шт.

11

S219334

CABLE

throttle control

1шт.

12

131-1

LOCK NUT,1/4"-28, GB

NUT, self locking - 1/4" - 28 NF

1шт.

13

S91894

CONTROL LEVER

LEVER, throttle

1шт.

14

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

15

T41928

CLAMP,3/16", Insul, 1/4" Bolt

1шт.

16

S94625

WASHER

flat - 3/8"

2шт.

17

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

2шт.

18

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT, ball

1шт.

19

S505702

BRACKET, throttle lever mounting

1шт.

20

195-18

WASHER,1/4"

flat - 1/4"

2шт.

21

S201620

CABLE

control - (Shut off)

1шт.

22

95-4

WASHER,1/4"

plain - 5/16"

1шт.
