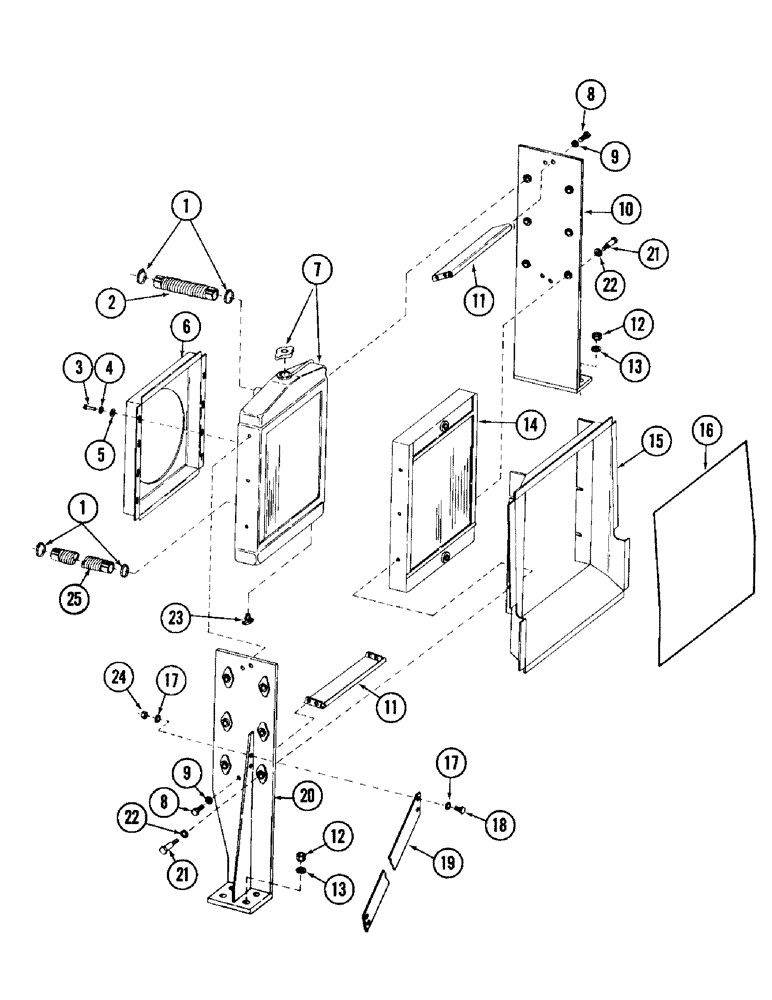

Запчасти Case 980 (062) - RADIATOR, OIL COOLER AND HOSES (01) - ENGINE

1

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP, hose

4шт.

2

S94323

RADIATOR HOSE,2.50" ID x 8.25", SAE 20R4 CLASS SC

- Upper 2.50" ID x 8.25", SAE 20R4 CLASS SC

1шт.

3

75-46

SCREW

machine - 1/4" - 20 NC x 3/8"

8шт.

4

195-18

WASHER,1/4"

flat - 1/4"

8шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

6

S602527

SHROUD

radiator

1шт.

7

S600781

RADIATOR

- (Includes cap)

1шт.

D25826

CAP

radiator

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

9

92-5

LOCK WASHER,5/16"

8шт.

10

S507218

BRACKET ASSEMBLY, oil cooler and radiator

1шт.

11

S224312

BRACKET ASSEMBLY, air shroud and, Serial Range: cooler-radiator

1шт.

12

131-72

LOCK NUT,1/2"-13

NUT, self locking - 1/2" - 13 NC

7шт.

13

S95569

WASHER

hardened - 1/2"

7шт.

14

S601960

COOLER, oil

1шт.

15

S604413

SHROUD, air

1шт.

16

M20696

SEAL

STRIP, weather - (10 ft. roll) 147" required

2шт.

17

195-25

WASHER,3/8"

flat - 13/32"

4шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

19

S95362

BRACE

1шт.

20

S505849

BRACKET ASSEMBLY, oil cooler and radiator

1шт.

21

S76819

STEP BOLT

BOLT, shoulder - 5/16" - 18 NC x 1-5/8"

12шт.

22

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

12шт.

23

A23656

COCK, DRAIN

VALVE, radiator drain

1шт.

24

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

2шт.

25

S95994

HOSE

2.50" ID x 20.00", sae 20R5, Radiator, Lower

1шт.
