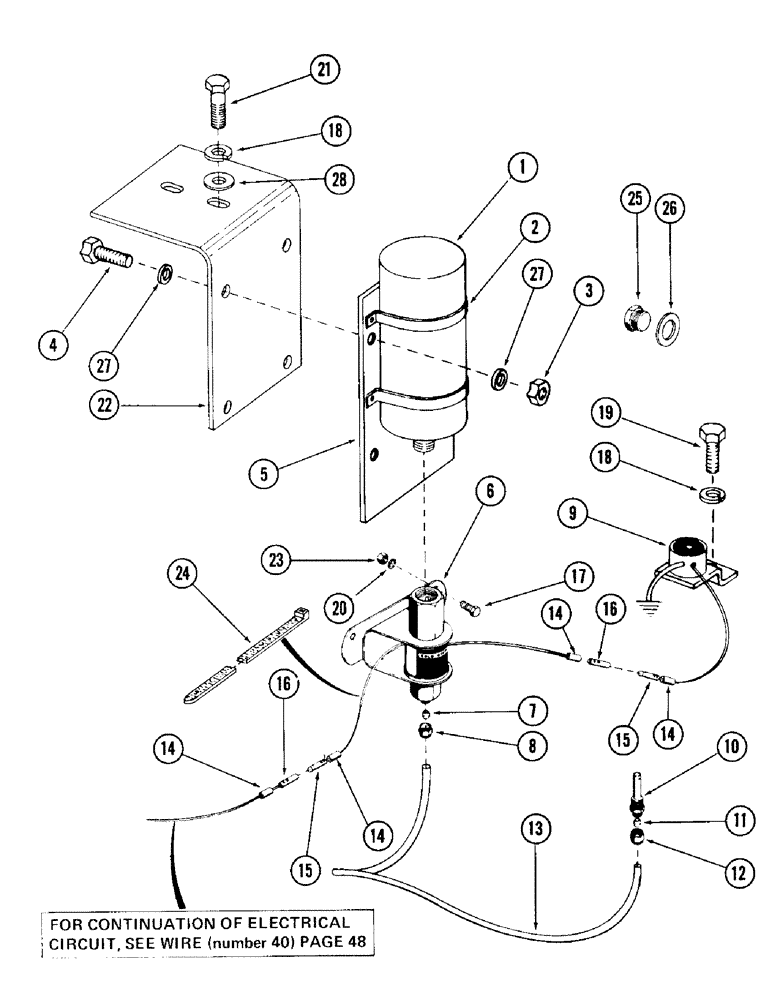

Запчасти Case 980 (058) - COLD WEATHER START KIT AND RELATED PARTS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
S205216
THERMOSTART
COLD WEATHER START KIT
1шт.
1
D55767
CYLINDER
ether
1шт.
2
NSS
NOT SOLD SEPARAT
CLAMP, cylinder mounting
2шт.
3
NSS
NOT SOLD SEPARAT
NUT
4шт.
4
NSS
NOT SOLD SEPARAT
CPSW
4шт.
5
NSS
NOT SOLD SEPARAT
BRACKET, cylinder mounting
1шт.
6
L35280
VALVE
ASSEMBLY, actuator
1шт.
7
222-650
SLEEVE,1/8" Tube, Comp
Flex (NPT brass) 1/8" Tube, Comp
1шт.
8
222-660
FLANGE NUT,5/16"-24, 45 Degree Fl, Comp
flex tube - (1/8" NPT brass) 5/16"-24, 45º Fl, Comp
1шт.
L35283
PACKAGE, REPAIR
SEAL KIT, overhaul repair
1шт.
NSS
NOT SOLD SEPARAT
SEAL, "O" ring - cylinder to valve - (13/16" ID)
1шт.
NSS
NOT SOLD SEPARAT
SEAL - "O" ring - armature (9/32" ID)
1шт.
NSS
NOT SOLD SEPARAT
SEAL - "O" ring - retainer fitting - (3/4" ID)
1шт.
NSS
NOT SOLD SEPARAT
WASHER, bumper - return fitting
1шт.
9
S62611
THERMOSTAT
1шт.
10
L35282
JET
NOZZLE, manifold
1шт.
11
222-650
SLEEVE,1/8" Tube, Comp
Flex (NPT brass) 1/8" Tube, Comp
1шт.
12
222-660
FLANGE NUT,5/16"-24, 45 Degree Fl, Comp
flex tube - (1/8" NPT brass) 5/16"-24, 45º Fl, Comp
1шт.
13
D55947
TUBE
nylon - (1/8" OD x 60" long)
1шт.
14
L11779
TUBE,0.187" ID x 0.187" OD x 1" L
INSULATOR, connector
4шт.
15
L11778
CONNECTOR, ELEC
CONNECTOR, male bullet - (.180" dia.)
2шт.
16
L13437
CONNECTOR, female bullet - (.180" dia.)
2шт.
17
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
4шт.
18
92-6
LOCK WASHER,3/8"
1шт.
19
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
1шт.
20
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
21
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
CPSW - 3/8" - 16 NC x 2-1/2"
2шт.
22
S223039
ANGLE
1шт.
23
25-104
NUT,1/4"-20, G5
2шт.
24
L18331
CABLE TIE,375.9mm L, Nylon, Black
TIE, cable
1шт.
25
A20917
PLUG
manifold heater hole - (1-1/8" - 12 NF)
1шт.
26
A20916
MANIFOLD GASKET
WASHER, plug
1шт.
27
95-4
WASHER,1/4"
flat - 5/16"
8шт.
28
S94625
WASHER
flat - 3/8"
2шт.
Выбрано товаров: 34
