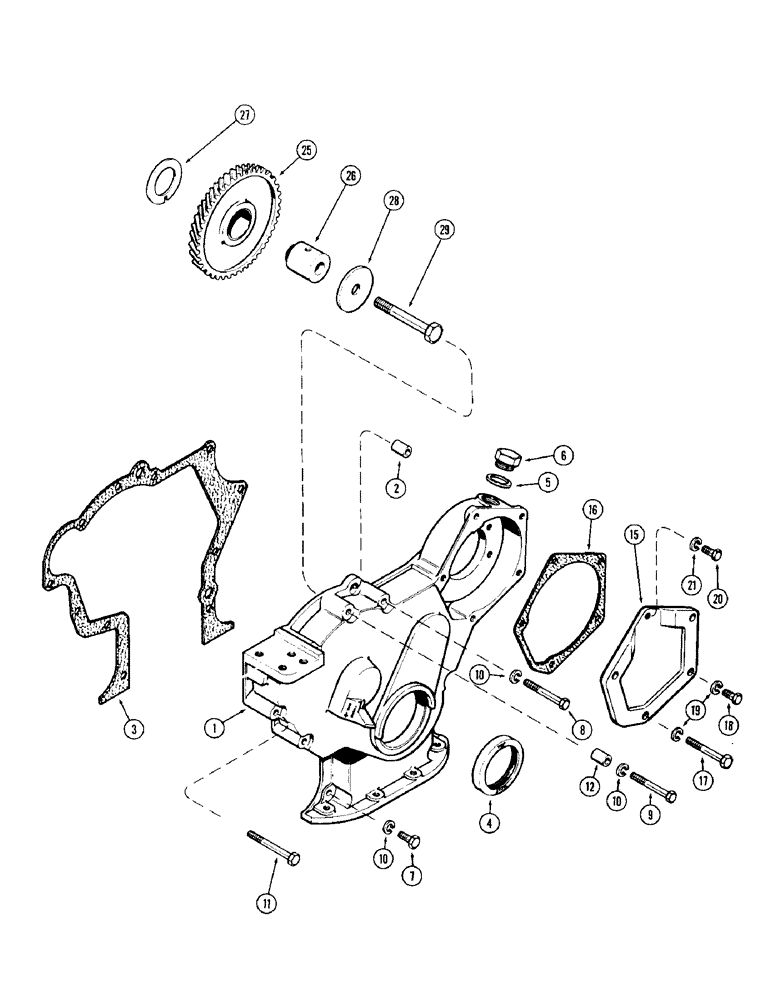

Запчасти Case 980 (038) - TIMING GEAR COVER & IDLER GEAR, (504BDT) DIESEL ENGINE (01) - ENGINE

1

A58609

COVER

ASSY - timing gear

1шт.

2

A58611

PIN

- dowel, cover

2шт.

3

A58612

GASKET

-, Serial Range: cover-block

1шт.

4

A62049

OIL SEAL

- oil, crankshaft, front

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

2шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex.)

1шт.

10

92-6

LOCK WASHER,3/8"

7шт.

11

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex.)

2шт.

12

A19774

BUSHING

SPACER - (3/8 x 1")

1шт.

15

A61053

COVER

- access fuel pump drive

1шт.

16

A58615

GASKET

- fuel pump gear cover

1шт.

17

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex.)

2шт.

18

A148253

BOLT

- (3/8 x 1-1/2" N.C. hex.) (Drilled) (For anti-tamper wire)

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Pad 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

25

A62542

GEAR

ASSY - idler (W/bushing)

1шт.

26

A58690

SHAFT

- idler gear

1шт.

27

A58691

WASHER

- thrust, idler shaft

1шт.

28

A58692

PLATE

- thrust, idler shaft

1шт.

29

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.
