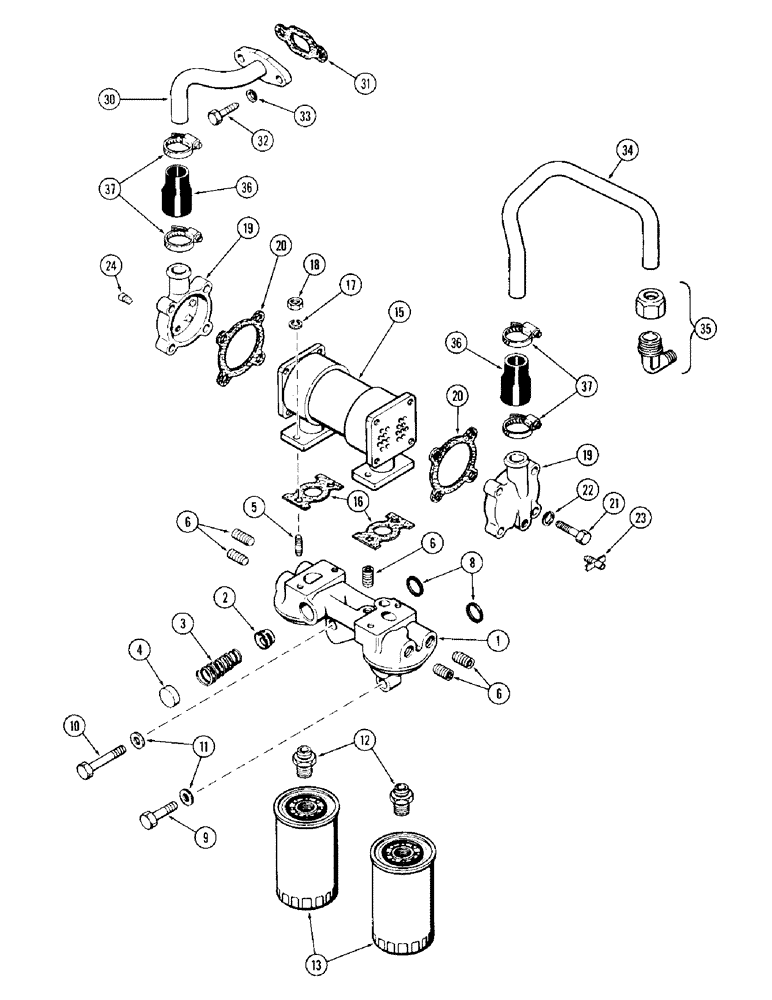

Запчасти Case 980 (026) - OIL FILTER & HEAT EXCHANGER, (504BDT) DIESEL ENGINE (01) - ENGINE

1

A64107

BASE

ASSY - oil filter

1шт.

2

A21090

VALVE

- relief, filter

1шт.

3

A58669

SPRING

- relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- cup (1-17/64")

1шт.

5

G11204

STUD

- (3/8" N.C. x 1-1/2")

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- pipe (1/2" hex. socket head)

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - base to block

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- (1/2 x 3" N.C. hex.)

1шт.

11

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 3/32"

2шт.

12

A64454

ADAPTER

-, Serial Range: element-base

2шт.

13

A64453

ENGINE OIL FILTER

ELEMENT - filter, oil

2шт.

15

A63917

COOLER

HEAT EXCHANGER - oil

1шт.

16

A65359

GASKET

- heat exchanger to filter base

2шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

19

A64349

HOOD

BONNET - heat exchanger ends

2шт.

20

A63920

GASKET

- bonnet

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

217-107

VALVE

DRAINCOCK - heat exchanger

1шт.

24

221-11

PLUG,Sq Hd, 1/8"-27

- pipe (1/8" square head)

1шт.

30

A64350

TUBE

- heat, Serial Range: exchanger-block

1шт.

31

A58670

GASKET

- tube

1шт.

32

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

A65844

TUBE

- heat exchanger to water pump

1шт.

35

222-5038

ELBOW,90 Degree, 1 5/16"-12 x 3/4" NPT, Hi-seal

- 90 degrees (1" tube O.D. x 3/4" male thread)

1шт.

36

A64353

HOSE

- bonnets to water tubes

2шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16 to 1-3/4")

4шт.
