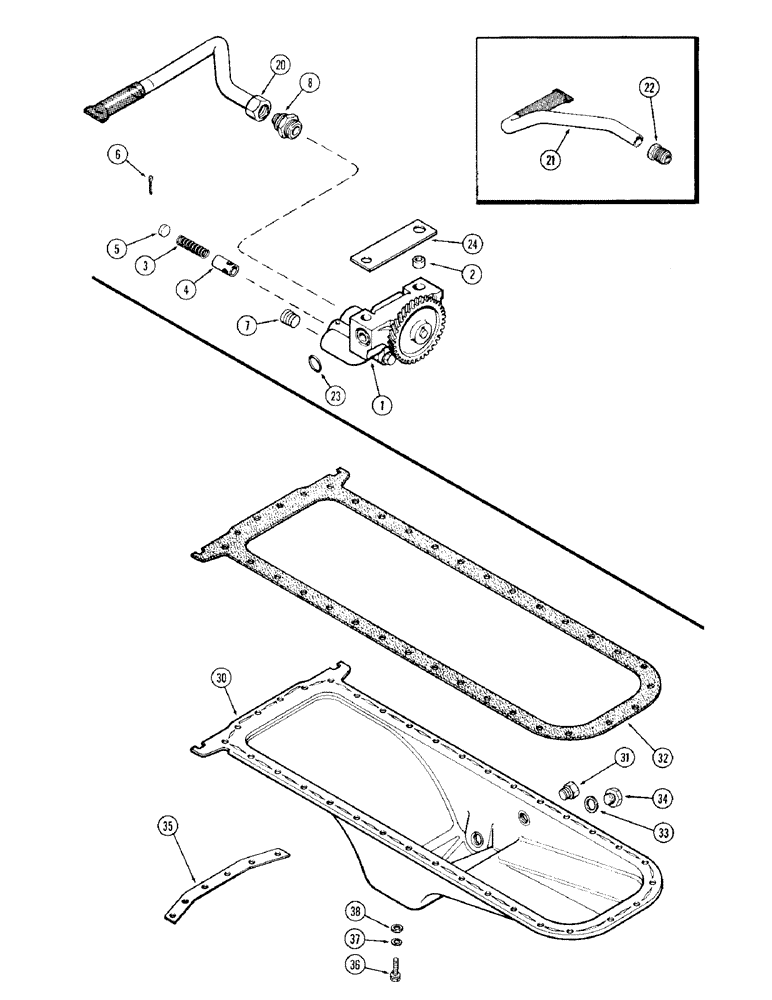

Запчасти Case 980 (024) - OIL PUMP, (504BDT) DIESEL ENGINE (01) - ENGINE

1

A144773

PUMP

ASSY - oil (Replaces A65080)

1шт.

2

A58915

SLEEVE

- pump body

1шт.

3

A59111

SPRING

- relief valve

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- 45/64" cup

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, 1/2" hex. sckt. hd.

1шт.

8

A142004

CONNECTOR, ELEC

CONNECTOR - oil pump screen tube

1шт.

20

A139711

TUBE

ASSY - oil suction, w/screen

1шт.

21

A62805

TUBE

ASSY - oil suction, w/screen (Order A139711 tube & A142004 connector)

1шт.

22

222-510

TUBE NUT,1 1/4"-18

NUT - tube (1" inverted flare)

1шт.

23

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - pump to block

1шт.

24

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

30

A62410

PAN

ASSY - oil (Replaces A62035)

1шт.

31

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, 1/2" hex. hd., oil pan

1шт.

32

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

33

A27968

RING

- oil pan drain plug

1шт.

34

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

35

A58932

STRAP

- oil pan reinforcement

1шт.

36

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

34шт.

37

92-6

LOCK WASHER,3/8"

oil pan 3/8"

34шт.

38

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16", oil pan

34шт.
