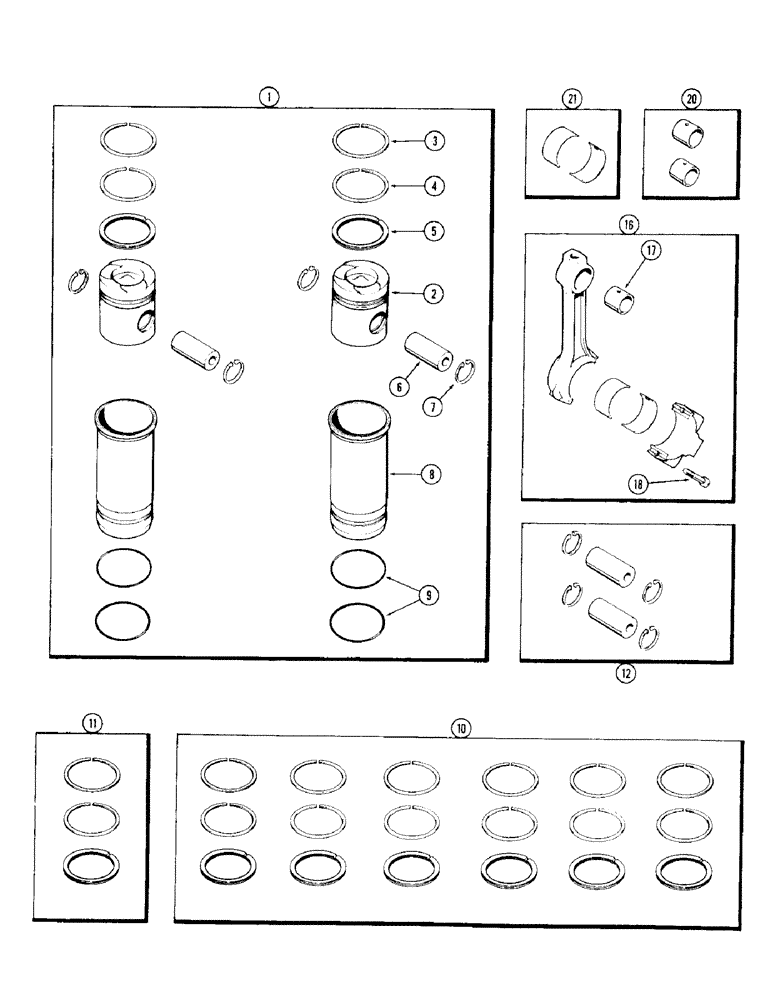

Запчасти Case 980 (022) - PISTON ASSEMBLY & CONNECTING RODS, (504BDT) DIESEL ENGINE (01) - ENGINE

1

A46024

PISTON

PISTON & SLEEVE KIT - (Set of 2) (Replaces A43080)

3шт.

2

A64110

PISTON

PISTON - cylinder (4-5/8" bore)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order Ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Bottom Groove) (Order Ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 12)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A140216

SLEEVE CYLINDER

SLEEVE - piston (Cylinder liner) (Replaces A58570)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - piston sleeve

4шт.

10

A43082

SET OF RINGS

RING KIT - re-ring (Set of 6)

1шт.

11

A43081

RING

RING KIT - re-ring (Set of 1)

6шт.

12

A44574

PIN

PIN KIT - w/retaining rings (Set of 2)

3шт.

16

A65032

ROD

ROD ASSY - connecting

6шт.

16

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

16

AC65032

CORE-ROD CONNECTING

Return Part Number Core-Connecting Rod

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 20)

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - (1/2 x 1-5/16" N.F., 12 pt. hd.)

2шт.

20

A41756

BUSHING

BUSHING KIT - piston kit (Set of 2)

3шт.

21

A41758

BEARING LINER

INSERT ASSY - conn. rod bearing (Standard) (Set of 2)

6шт.

21

A41899

BEARING LINER

INSERT ASSY - conn. rod bearing (-0.002")

6шт.

21

A41900

BEARING LINER

INSERT ASSY - conn. rod bearing (-0.010")

6шт.

21

A41901

BEARING LINER

INSERT ASSY - conn. rod bearing (-0.020")

6шт.

21

A41902

BEARING LINER

INSERT ASSY - conn. rod bearing (-0.030")

6шт.
