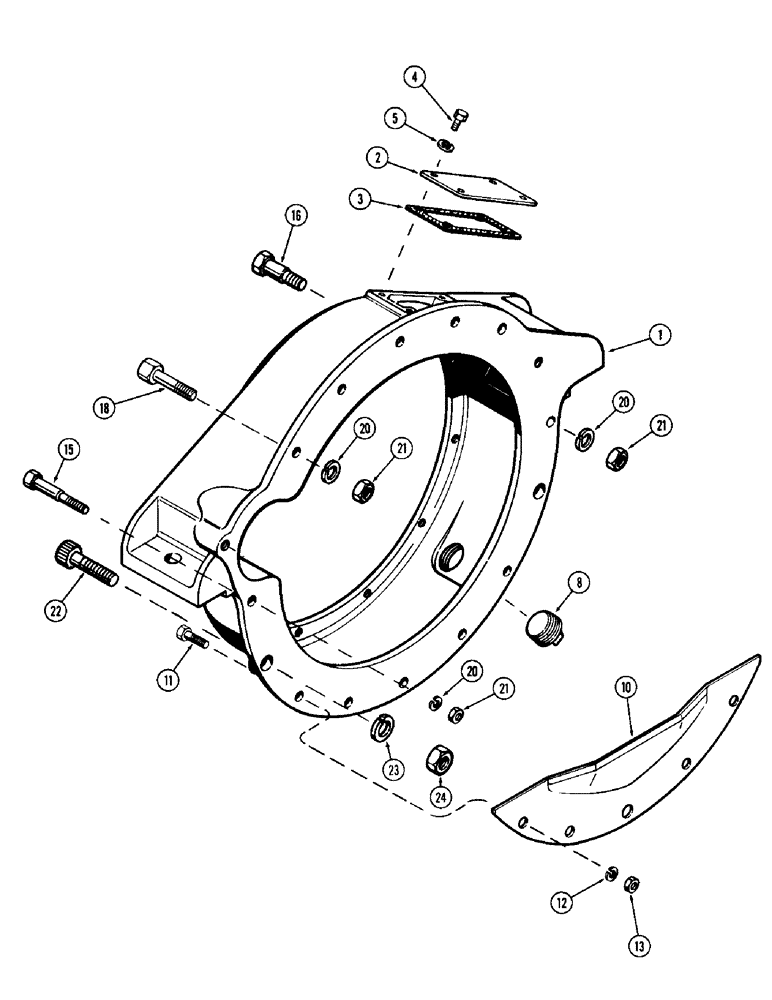

Запчасти Case 980 (020) - FLYWHEEL HOUSING, (504BDT) DIESEL ENGINE (01) - ENGINE

1

A21040

HOUSING

- flywheel

1шт.

2

A22584

COVER

PLATE - hand hole cover

1шт.

3

A22585

GASKET

- plate

1шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

5

92-5

LOCK WASHER,5/16"

4шт.

8

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe (1-1/4" square head)

1шт.

10

A58931

GUARD

SHIELD - dust

1шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

4шт.

15

A32607

STEP BOLT

- shoulder (1/2 x 1-3/8" N.C. hex.)

1шт.

16

A32608

STEP BOLT

BOLT - shoulder (1/2 x 2-13/16" N.C. hex.)

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

18

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2 x 2-1/2" N.C. hex.)

3шт.

20

92-8

LOCK WASHER,1/2"

8шт.

21

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

5шт.

22

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- flywheel hsg. to block (3/4 x 3" N.C., 12 pt.)

2шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

24

25-1012

NUT,3/4"-10, G5

2шт.
