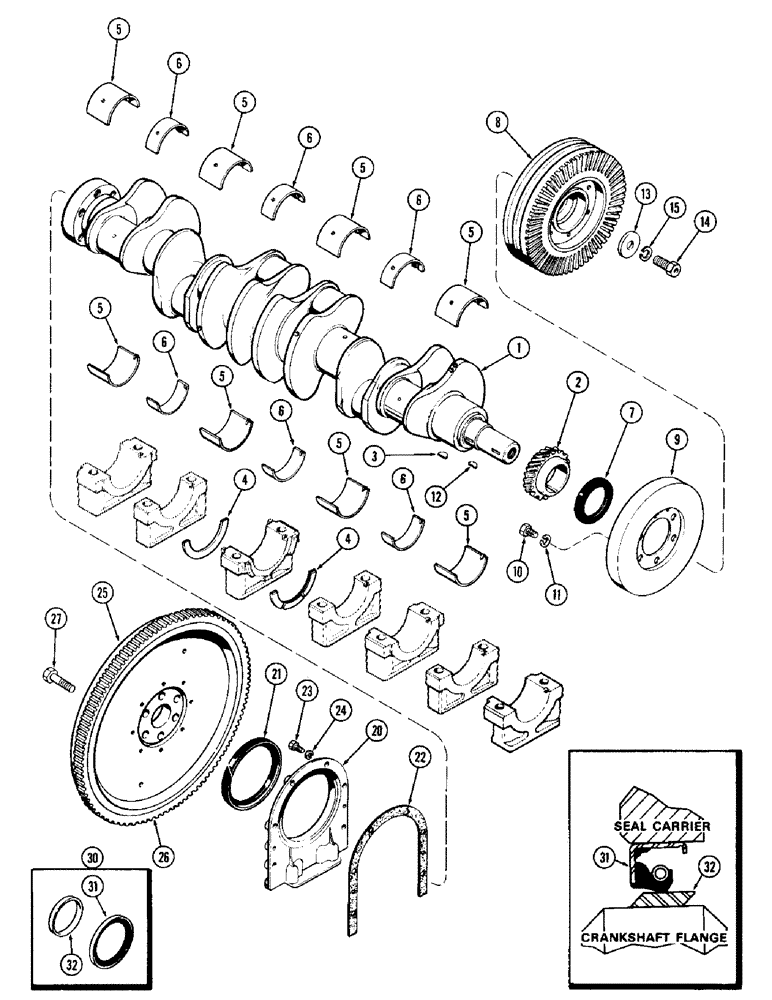

Запчасти Case 980 (018) - CRANKSHAFT & FLYWHEEL, (504BDT) DIESEL ENGINE (01) - ENGINE

1

A66728

CRANKSHAFT

ASSY - engine (Replaces A65097)

1шт.

2

A66404

GEAR

- crankshaft, front (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft to gear #C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, crankshaft (Standard) (Bronze)

2шт.

4

A42447

WASHER

- thrust, crankshaft (0.006" oversize) (Bronze)

1шт.

5

A43090

BEARING LINER

LINER - main bearing, wide (Standard)

4шт.

5

A43124

LINING

LINER - main bearing, wide (-0.002")

4шт.

5

A43125

CRANKSHAFT BEARING

LINER - main bearing, wide (-0.010")

4шт.

5

A43126

LINING

LINER - main bearing, wide (-0.020")

4шт.

5

A43127

LINING

LINER - main bearing, wide (-0.030")

4шт.

5

A43089

BEARING LINER

LINER - main bearing, narrow (Standard)

3шт.

6

A43120

LINING

LINER - main bearing, narrow (0.002")

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow (-0.010")

3шт.

6

A43122

LINING

LINER - main bearing, narrow (-0.020")

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow (-0.030")

3шт.

7

A62049

OIL SEAL

- crankshaft, front (2-5/8 x 3-5/8 x 15/32")

1шт.

8

A58828

PULLEY

- fan drive

1шт.

9

A58900

DAMPER

- viscous pulley

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft to pulley #C, 5/16" x 1 1/8", HT

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

- crankshaft, rear (4-3/4 x 5-3/4 x 1/2") (See Ref. 30)

1шт.

22

A32830

GASKET

- retainer, rear oil seal

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A58683

FLYWHEEL

ASSY

1шт.

26

A27920

GEAR

- ring (137 teeth)

1шт.

27

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- (5/8 x 1-1/2" N.F. hex.)

6шт.

Ref #27A - A58629 Washer, Hardened 06/07/96

1шт.

30

A43194

KIT

- crankshaft wear seal

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil, wear seal kit

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal wear, kit

1шт.
