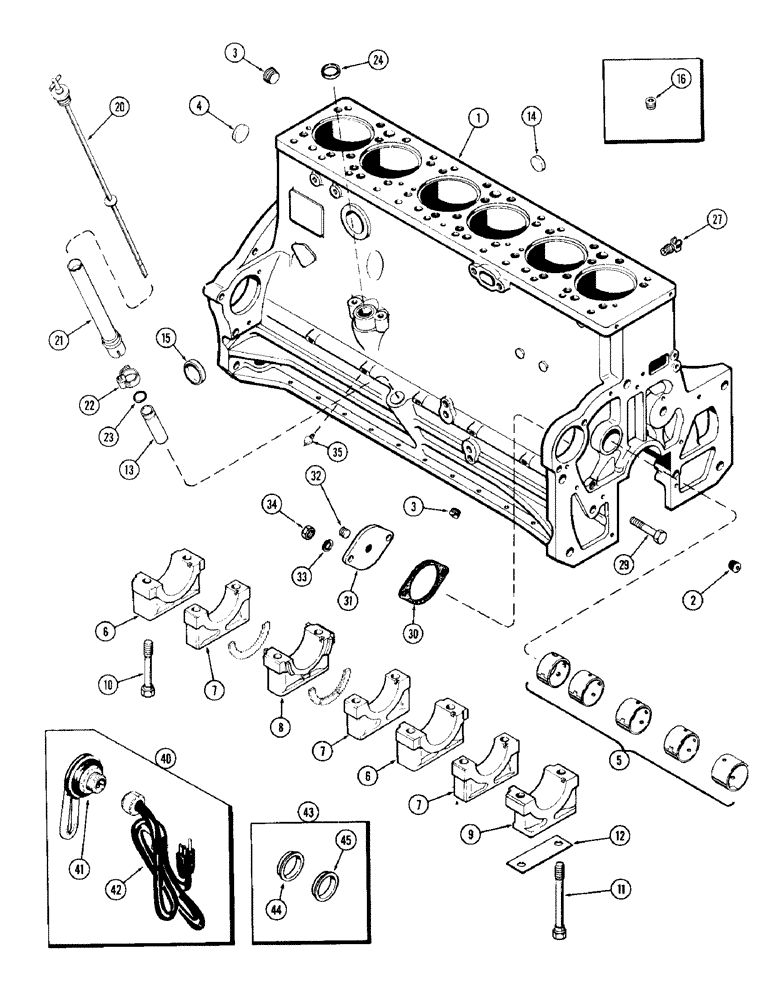

Запчасти Case 980 (017A[1]) - CYLINDER BLOCK HEATER (01) - ENGINE

A43079

SKELETON ENGINE

BLOCK ASSY - short (Includes stripped block, pistons, conn. rods. & brgs., crankshaft & brgs., camshaft & bushings, timing gears & push rod lifters) (Casting #A58515)

1шт.

1

A41765

SKELETON ENGINE

BLOCK ASSY - stripped (Casting #58515)

1шт.

2

221-1843

PLUG

- (3/8" P.T., hex. socket head)

4шт.

3

221-41

PLUG

- (1/8" P.T., slotted headless)

6шт.

4

A24361

PLUG

- cup (2-3/8"), rear camshaft hole

1шт.

5

A23544

BUSHING

KIT - camshaft

1шт.

6

A58562

CAP

- main bearing, wide

2шт.

7

A58563

CAP

- main bearing, narrow

3шт.

8

A58564

CAP

- main bearing, thrust

1шт.

9

A58561

CAP

- main bearing, front

1шт.

10

A58566

STEP BOLT

BOLT - (5/8 x 4-1/2" N.C., special)

12шт.

11

A58567

STEP BOLT

BOLT - bearing cap to oil pump

2шт.

12

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

13

A34540

TUBE

SOCKET - oil filler

1шт.

14

A58568

PLUG,Cup, 1 3/8", Stainless

- cup (1-3/8"), water gallery

3шт.

15

A58569

PLUG,Cup, 2", Stainless

- cup (2"), block heater hole

1шт.

16

221-845

PLUG,Hex Soc, 3/4"-14

- pipe (3/4" hex. socket head) (To plug turbo hole) (Not applicable)

1шт.

20

A22589

ELECTRICAL GAUGE

DIPSTICK - oil level

1шт.

21

A65778

TUBE

EXTENSION - oil filler tube

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - extension to tube (1-3/16 to 1-3/4")

1шт.

23

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - extension to tube (1-1/8 x 1-3/8 x 1/8")

1шт.

24

41-1022

PLUG,Cup, 1 3/8"

- 1-3/4" cup

1шт.

27

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

29

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex.)

2шт.

30

A58617

GASKET

- fuel pump mounting cover

1шт.

31

A58891

COVER

- fuel pump mounting

1шт.

32

221-843

PLUG,Hex Soc, 3/8"-18

- pipe (3/8" hex. socket head)

1шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

35

S27826

SENDER UNIT

SENDER - engine oil pressure

1шт.

40

A44812

HEATER

ASSY - block (Replaces A42279)

1шт.

NSS

NOT SOLD SEPARAT

ELEMENT ASSY - heater (Order A44812)

1шт.

41

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - 1-3/4 x 2 x 1/8"

1шт.

42

A44813

CABLE EXTENSION

CORD ASSY - heater (w/plugs) (Replaces A42297)

1шт.

43

A44006

SLEEVE

KIT - cylinder block heater

1шт.

44

NSS

NOT SOLD SEPARAT

SLEEVE - heater, 2-1/16" O.D.

1шт.

45

NSS

NOT SOLD SEPARAT

SLEEVE - heater, 2-1/8" O.D.

1шт.
