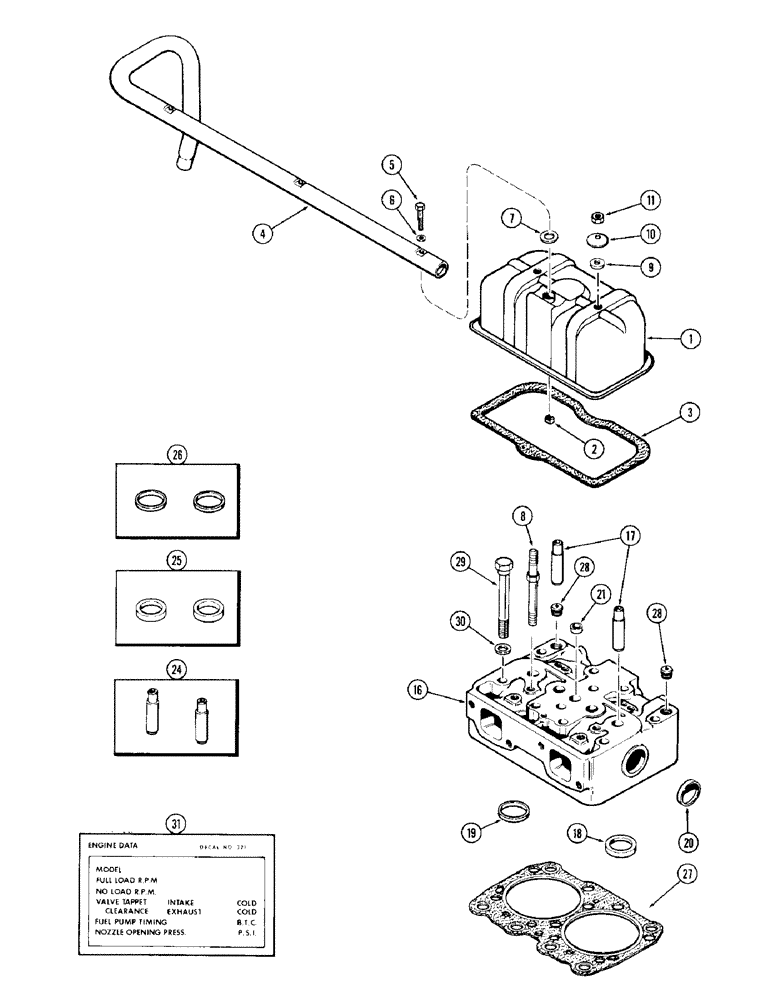

Запчасти Case 980 (012) - CYLINDER HEAD & COVER, (504BDT) DIESEL ENGINE (01) - ENGINE

1

A58929

COVER

COVER ASSY - cylinder head

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - (1/4" N.C. Tinnerman)

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover

3шт.

4

A58634

SPARE PART TUBE - breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT, Hex, 1/4"-20 x 2 1/2", G5

3шт.

6

A34133

GASKET

GASKET - breather tube screw

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET -, Serial Range: tube-cover

3шт.

8

A67121

STUD

STUD - rocker arm bracket & cyl. hd. cover (Replaces A60885)

6шт.

9

A23684

GASKET

GASKET - cover stud

6шт.

10

A23683

WASHER

WASHER - beveled, cover stud

6шт.

11

25-107

NUT,7/16"-14, G5

NUT - (7/16" N.C. hex.)

6шт.

16

A60558

CYLINDER HEAD

HEAD ASSY - cylinder (Casting #A60559)

3шт.

16

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

3шт.

16

AC66686

CORE-CYLINDER HEAD

Return Number

3шт.

17

NSS

NOT SOLD SEPARAT

GUIDES - intake & exhaust valves (Order Ref. 24)

4шт.

18

NSS

NOT SOLD SEPARAT

INSERT - exhaust valves (Order Ref. 25)

2шт.

19

NSS

NOT SOLD SEPARAT

INSERT - intake valves (Order Ref. 26)

2шт.

20

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - cup (1-5/8")

2шт.

21

A58620

PLUG,Cup, 3/4", Stainless

PLUG - cup (3/4")

3шт.

24

A41781

GUIDE

GUIDE KIT - intake & exhaust valves (Set of 2)

6шт.

25

A44576

INSERT

INSERT KIT - exhaust valve (Set of 2) (Replaces A41757)

3шт.

26

A42259

INSERT

INSERT KIT - intake valve (Set of 2)

3шт.

27

A138149

GASKET

GASKET - cylinder head, w/fire ring (Replaces A64113)

3шт.

28

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - (3/8" P.T. hex. socket head)

6шт.

29

A136498

BOLT

BOLT - (5/8 x 6" N.C. hex., Special) (1st used eng. ser. no. 2556252)

30шт.

29

A62732

STEP BOLT

BOLT - (5/8 x 5-5/8" N.C. hex., special) (Used prior to eng. ser. no. 2556252)

30шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

31

321-2308

DECAL - engine data (Cyl. head cover)

1шт.
