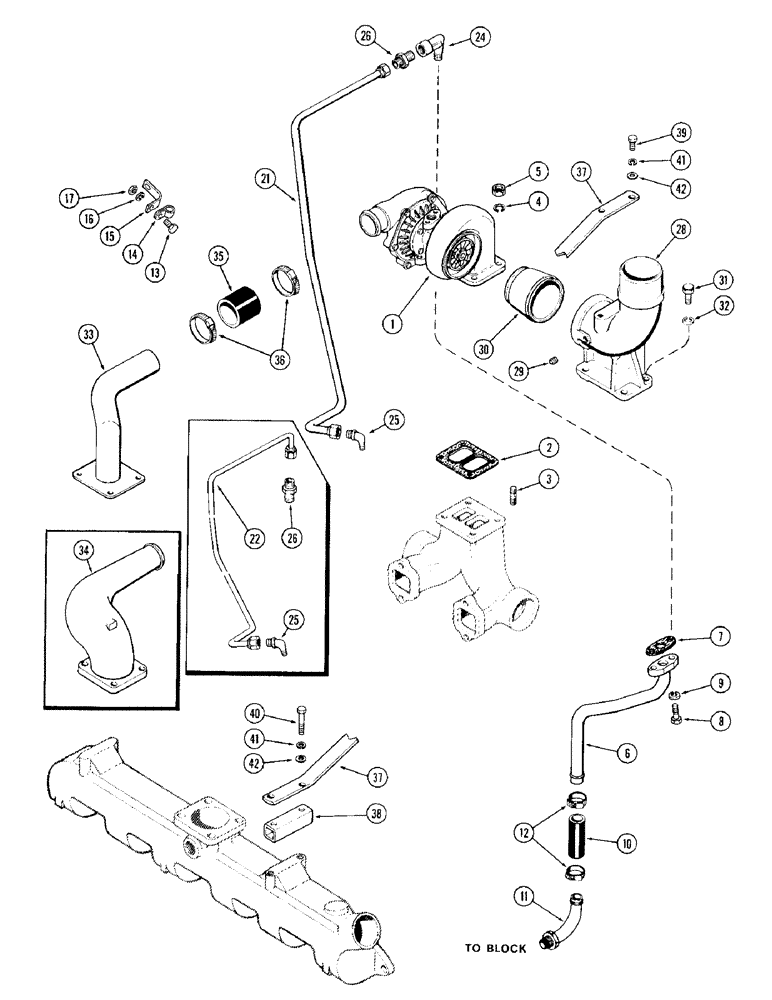

Запчасти Case 980 (010) - TURBO-CHARGER, (504BDT) DIESEL ENGINE (01) - ENGINE

1

A44498

CORE-TURBOCHARGER

TUBBO-CHARGER - Strap type, return number This part no. is used to return original equipment turbo-charger for credit on a rebuilt turbo-charger. Order A44499 for repairs

1шт.

1

A44499

TURBOCHARGER

TURBO-CHARGER - strap type, rebuilt

1шт.

1

A42052

CORE-TURBOCHARGER

TURBO-CHARGER - clamp type, return number This part no. is used only to return original equipment turbo-charger for credit on rebuilt turbo-charger. Order A41956 for repairs

1шт.

1

A41956

TURBOCHARGER

TURBO-CHARGER - clamp type, rebuilt

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbo-charger-manifold

1шт.

3

G11204

STUD

- (3/8" N.C. x 1-7/16")

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex., Seezpruf)

4шт.

6

A62518

TUBE

- oil drain

1шт.

7

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

A58893

HOSE

-, Serial Range: drain-fitting

1шт.

11

A58897

FITTING

- drain

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16 to 1-3/4")

2шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

14

49845

CLAMP

CLIP - oil supply tube

1шт.

15

A75301

BRACKET

- turbo oil supply tube clip

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

21

A66037

TUBE

ASSY - oil supply, turbocharger

1шт.

22

A64375

TUBE

ASSY - oil supply, turbocharger (Order A66037 & 217-19)

1шт.

24

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 1/4" P.T. x 90 degrees

1шт.

25

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- 90 degrees (3/8" tube x 3/8" P.T.) (In filter head)

1шт.

26

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - (1/4" P.T. for 3/8" tube) (In turbo-charger)

1шт.

28

A61941

ELBOW

- exhaust, turbo-charger

1шт.

29

221-12

PLUG,Sq Hd, 1/4"-18

- pipe (1/4" sq. hd.)

1шт.

30

A65554

TUBE

CONNECTOR - exhaust elbow

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

A77242

ELBOW

- air intake, turbo-charger (Formed tube) (1st used eng. ser. no. 2579516)

1шт.

34

A58903

ELBOW UNION

ELBOW - air intake, turbo-charger (Case iron) (Used prior to eng. ser. no. 2579516)

1шт.

35

A58894

HOSE

- air intake elbow

1шт.

36

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

37

A61944

BRACE

-, Serial Range: elbow-manifold

1шт.

38

A67057

SPACER

- brace to manifold (Replaces A61945)

1шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

40

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

2шт.

41

92-6

LOCK WASHER,3/8"

4шт.

42

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.
