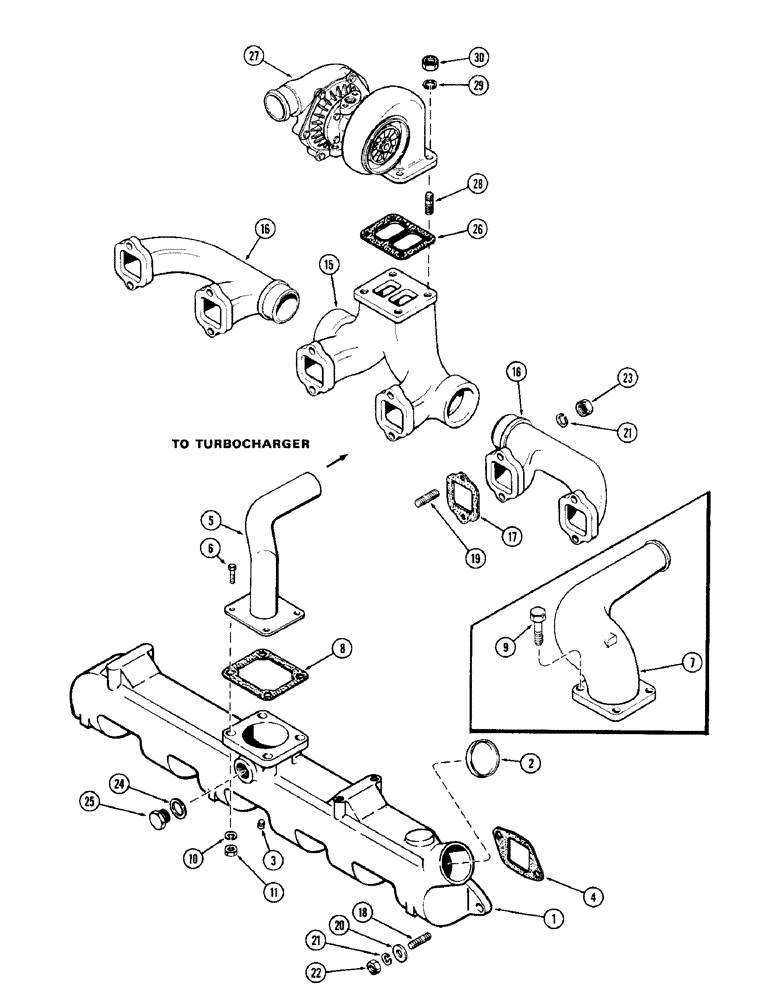

Запчасти Case 980 (008) - MANIFOLDS & TURBO-CHARGER, (504BDT) DIESEL ENGINE (01) - ENGINE

1

A62845

MANIFOLD

ASSY - intake

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

1шт.

3

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

Pipe

1шт.

4

A58662

MANIFOLD GASKET

Intake manifold

6шт.

5

A77242

ELBOW

Air intake, turbo-charger (Formed tube) (1st used eng. S/N 2579516)

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Used w/A77242 elbow)

4шт.

7

A58903

ELBOW UNION

Union Elbow Air intake, turbo-charger (Cast iron) (Used prior to eng. S/N 2579516)

1шт.

8

A58910

GASKET

Elbow

1шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Used w/A58903 elbow)

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

Hex

4шт.

15

A76322

MANIFOLD

Exhaust, center (Replaces A58906)

1шт.

16

A65917

MANIFOLD

Exhaust, ends (Replaces A58907)

2шт.

17

A58895

GASKET

Exhaust manifold

6шт.

18

A59077

STUD

Intake manifold, 3/8" x N.C. hex. 1-13/16"

12шт.

19

A140924

STUD

Exhaust manifold, 3/8" N.C. x 2-5/8" (Replaces A35175)

12шт.

20

195-25

WASHER,3/8"

Intake manifold (13/32 x 13/16 x 1/16")

12шт.

21

92-6

LOCK WASHER,3/8"

24шт.

22

25-166

NUT,3/8"-16, G5, Hvy

Intake manifold

12шт.

23

131-903

NUT,3/8"-16

Exhaust manifolds (Seezpruf)

12шт.

24

A20916

MANIFOLD GASKET

Intake manifold

1шт.

25

A20917

PLUG

Intake manifold (Used w/o heater)

1шт.

26

A58899

GASKET,0.45mm Thk

, Serial Range: Turbo-charger-manifold

1шт.

27

REF

INSTRUCTION

TURBO-CHARGER - (Order from figure 10)

1шт.

28

G11204

STUD

(3/8" N.C. x 1-7/16")

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

131-903

NUT,3/8"-16

Hex (Seezpruf)

4шт.
