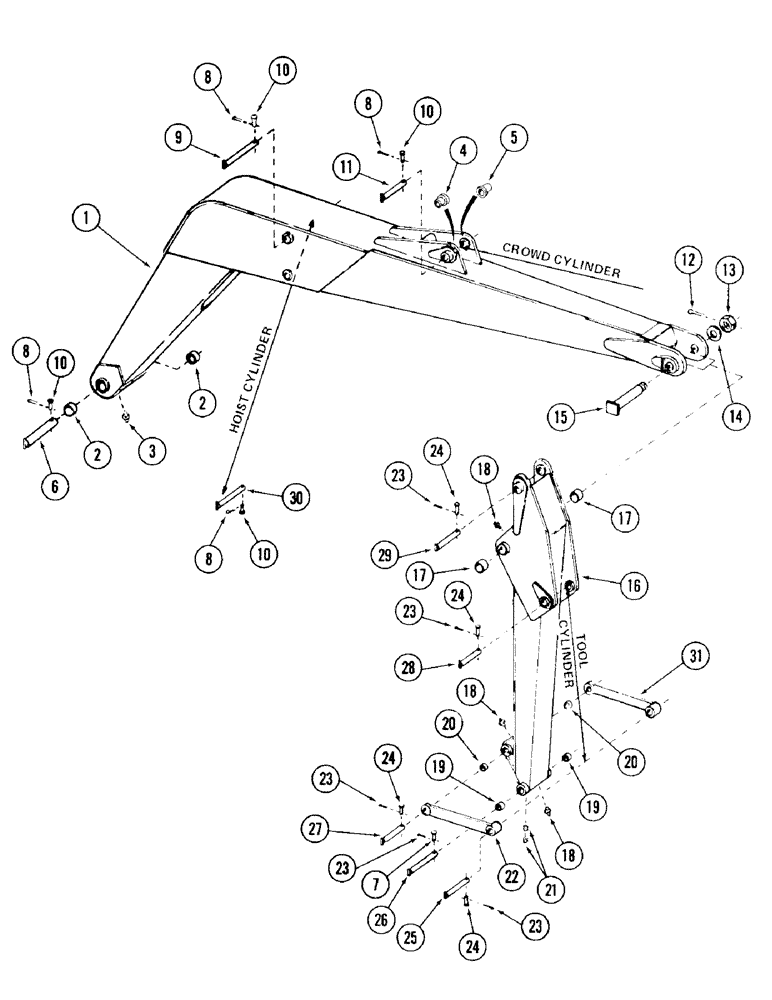

Запчасти Case 980 (212) - MAIN BOOM, DIPPERSTICK AND RELATED PARTS (09) - BOOMS

1

BOOM, main - (Used on units with serial number 6203600 thru 6203610 and 6203612) - see item 32

1шт.

S607352

BOOM, main - (Used on units with serial number 6203611 and 6203613 and after)

1шт.

2

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT (Straight)

1шт.

4

S95334

SLEEVE

BUSHING

1шт.

5

S95335

BUSHING

1шт.

6

S201023

PIN

main, Serial Range: boom-turntable

1шт.

7

S61974

PIN

clevis - 5/8" dia. x 3.766" grip length

1шт.

8

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

9

S220251

PIN ASSY.

PIN, hoist cylinder to main boom

1шт.

10

S61976

CLEVIS PIN

PIN, clevis - 5/8" dia. x 4.51" grip length

4шт.

11

S222420

PIN ASSY.

PIN, crowd cylinder, Serial Range: base-boom

1шт.

12

132-161

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), 1/4" x 3 1/2"

1шт.

13

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT, hex slotted - 2" - 4-1/2" NC

1шт.

14

95-40

WASHER,2 1/2" x 5" x .238"

flat - 2"

1шт.

15

S220250

PIN ASSY.

PIN, shoulder - dipper to main boom

1шт.

16

S953527

DIPPERSTICK, 9 ft.

1шт.

S953528

DIPPERSTICK, 10 ft.

1шт.

17

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT straight

3шт.

19

S87929

BUSHING

2шт.

20

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

2шт.

21

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

4шт.

22

S216188

LINK ASSY.

LEVER, tool (Right hand)

1шт.

23

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

5шт.

24

141-340

X

PIN, clevis - 1/2" dia. x 5.00" grip length

4шт.

25

S223985

PIN ASSY.

PIN, tool cylinder, Serial Range: rod-lever

1шт.

26

S220251

PIN ASSY.

PIN, Serial Range: attachment-dipperstick

1шт.

27

S223985

PIN ASSY.

PIN, lever, Serial Range: ass'y-dipperstick

1шт.

28

S208704

PIN

tool cylinder, Serial Range: base-dipper

1шт.

29

S208704

PIN

crowd cylinder, Serial Range: rod-dipper

1шт.

30

S212137

PIN

hoist, Serial Range: cylinder-turntable

1шт.

31

S216189

LEVER, tool (Left hand)

1шт.

32

S608908

PACKAGE

KIT, sound conversoin - (Required on units with serial number 6203000 thru 6203610 and 6203612)

1шт.
