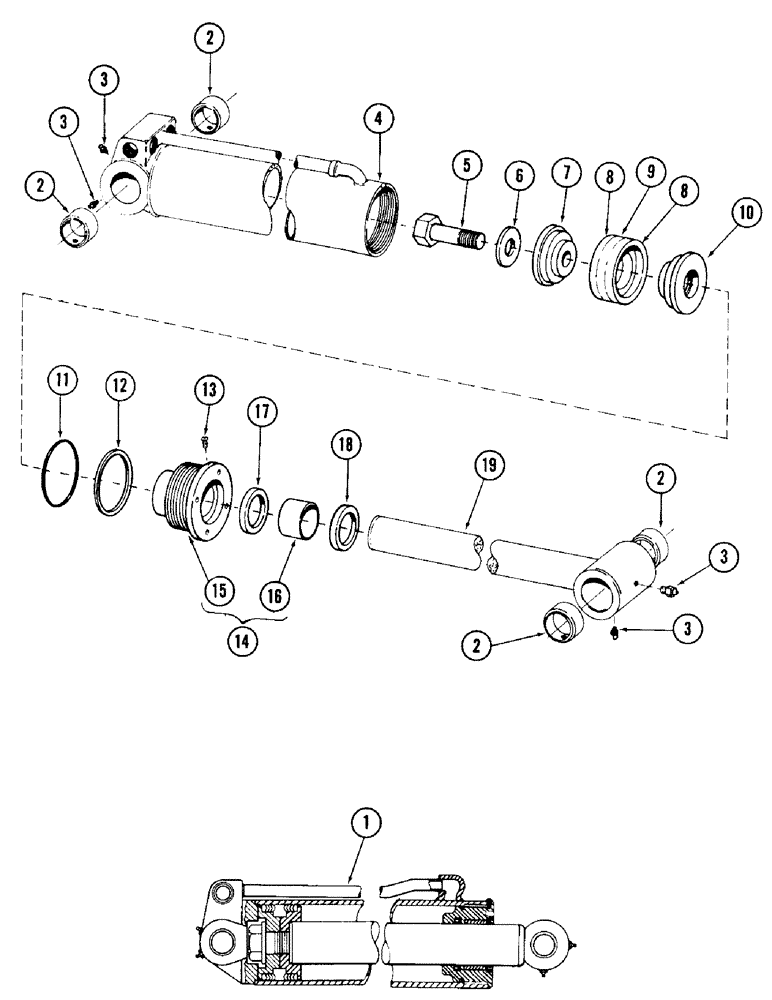

Запчасти Case 980 (210) - TOOL CYLINDER (07) - HYDRAULIC SYSTEM

1

S602375

TURBINE

CYLINDER, tool

1шт.

2

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

4шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT (Straight)

4шт.

4

S505940

CYLINDER ASSY.

TUBE ASSEMBLY

1шт.

5

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

piston - 1-1/2" - 12 NF x 3-1/2"

1шт.

6

NLS

NO LONGER SERVICED

1шт.

7

D49165

PISTON

split - (Bolt end)

1шт.

8

D47207

GASKET KIT

"V" PACKING

2шт.

9

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING, center bearing

1шт.

10

D49164

PISTON

split - (Rod end)

1шт.

11

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

"O" RING

1шт.

12

S92644

RING

back up

1шт.

13

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW, self tapping

1шт.

14

S220026

GLAND

ASSEMBLY

1шт.

15

NSS

NOT SOLD SEPARAT

GLAND, packing

1шт.

16

S220008

BUSHING

1шт.

17

D45571

ROD

"U" CUP

1шт.

18

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER, rod

1шт.

19

S220045

ROD

piston

1шт.
