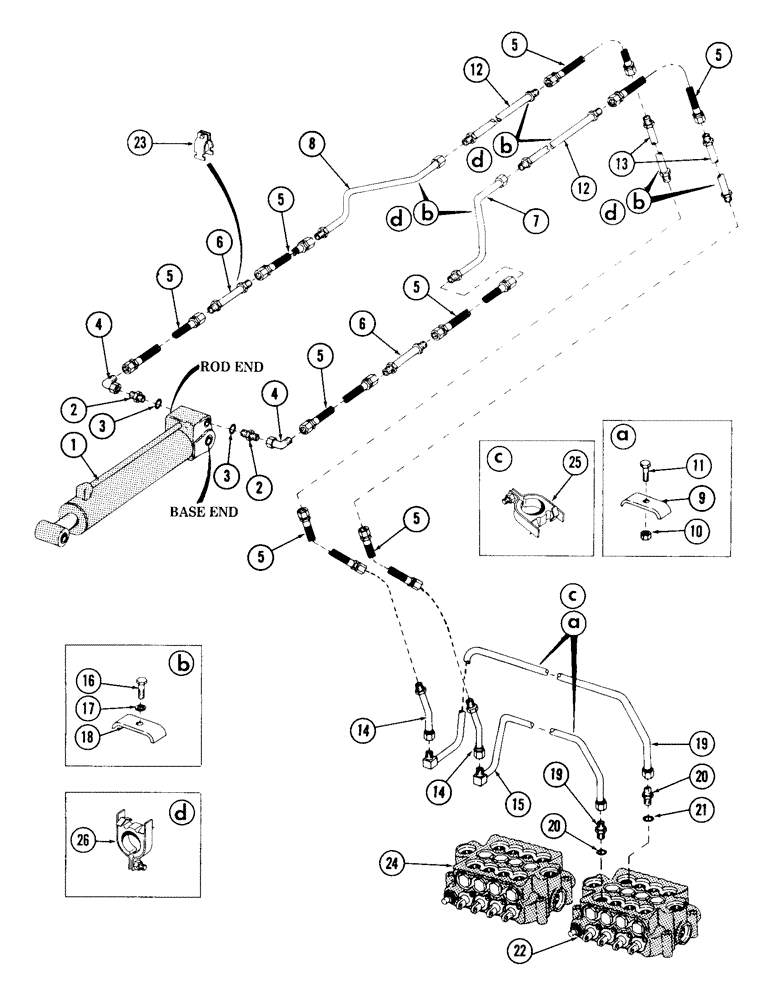

Запчасти Case 980 (208) - TOOL CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, tool (For breakdown, see figure 210)

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(1.403" OD)

2шт.

4

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

2шт.

5

S8628

HOSE

High pressure - 1" ID x 36" long (With 1-5/16"-12 female pressed on couplings)

6шт.

6

S211836

TUBE,1.25" OD x 17.3" L

LINE, hydraulic - (With 9'-0" dipperstick)

2шт.

S211835

TUBE ASSY.,1.25" OD x 41.3" L

LINE, hydraulic - (With 10'-5" dipperstick)

2шт.

7

S211833

TUBE ASSY.,1.25" OD x 35.6, 7.7" L

LINE, hydraulic

1шт.

8

S211834

TUBE ASSY.,35.6, 7.7" L

LINE, hydraulic

1шт.

9

S46397

CLAMP

Tube - (Used on units with S/N 6203000 thru 6203568)

2шт.

131-10

NUT,1/2"-13, GB

(Used on units with S/N 6203000 thru 6203568)

2шт.

11

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Used on units with S/N 6203000 thru 6203568)

2шт.

12

S211832

LINE

SPARE PART Hydraulic

2шт.

13

S211850

TUBE ASSY.,1.25" OD x 46.4" L

LINE, hydraulic

2шт.

14

S211849

LINE,1.25" OD

Hydraulic

2шт.

15

S502080

PIPE,1.25" OD

LINE, hydraulic

1шт.

16

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

(Used on units with S/N 6203000 thru 6203610 and 6203612)

6шт.

17

92-8

LOCK WASHER,1/2"

(Used on units with S/N 6203000 thru 6203610 and 6203612)

6шт.

18

S46397

CLAMP

Tube - (Used on units with S/N 6203000 thru 6203610 and 6203612)

6шт.

19

S502081

PIPE,1.25" OD

LINE, hydraulic

1шт.

20

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(1.156" OD)

2шт.

22

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 150)

1шт.

23

S93266

CLAMP

Tube

4шт.

24

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 152)

1шт.

25

S93266

CLAMP

Tube - (Used on units with S/N 6203569 and after)

2шт.

26

S93266

CLAMP

Tube - (Used on units with S/N 6203611 and 6203613 and after)

6шт.
