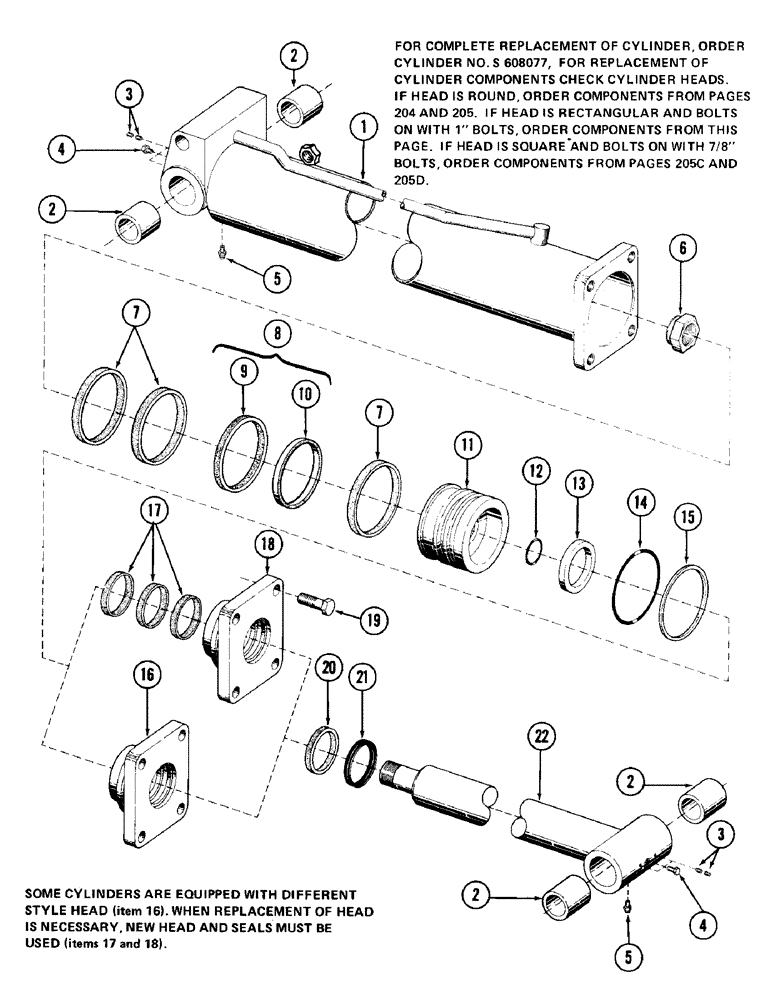

Запчасти Case 980 (205A) - CROWD CYLINDER (07) - HYDRAULIC SYSTEM

CYLINDER, crowd - complete (Consists of items 1 thru 22)

2шт.

1

S606345

TUBE

cylinder - (Includes item 2 and 3)

1шт.

2

S225645

BUSHING

4шт.

3

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW, set - 5/16" NC x 3/8"

8шт.

4

221-1661

PLUG

pipe - 1/8" NPT

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

2шт.

6

S83249

NUT

1шт.

7

S97856

RING

wear

3шт.

8

S224768

SEAL

ASSEMBLY, piston - (Includes items 9 and 10)

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, piston

1шт.

10

NSS

NOT SOLD SEPARAT

RING, expander

1шт.

11

S508236

PISTON

1шт.

12

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

"O" RING - 1.975" ID x 2.375" OD

1шт.

13

S97798

SPACER

1шт.

14

S6030

O-RING,5.975" ID x 6.525" OD x 0.275"

"O" RING - 5.975" ID x 6.500" OD

1шт.

15

S99881

WASHER

back-up

1шт.

16

HEAD, cylinder - (To be replaced by new style head and wear rings items 17 and 18)

1шт.

17

S104133

OIL SEAL

RING, wear

3шт.

18

S607741

HEAD

cylinder - (Used to replace head, item 16)

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

4шт.

20

S97855

SEAL

rod

1шт.

21

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER, rod

1шт.

22

S508274

ROD

cylinder - (Includes items 2 and 3)

1шт.

S609427

PACKING

KIT, packing - (Consists of items 7, 8, 12, 14, 15, 17, 20, 21)

1шт.
