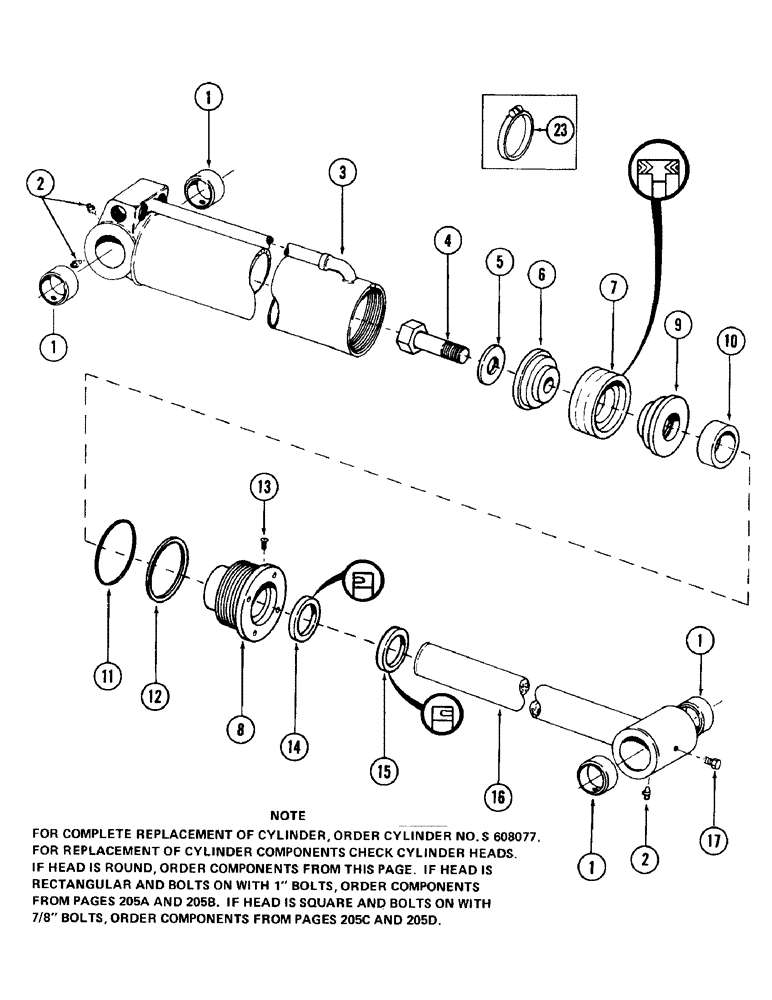

Запчасти Case 980 (204) - CROWD CYLINDER (07) - HYDRAULIC SYSTEM

CYLINDER - complete (Consists of items 1 thru 17) - (See note)

2шт.

1

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

4шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

2шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

3

S602587

TUBE, cylinder - (Includes 2 of item 1)

1шт.

4

28-3272

BOLT,Hex, 2" - 12 x 4-1/2", Gr 8

1шт.

5

S98870

WASHER

1шт.

6

S225623

PISTON

split - (Bolt end)

1шт.

7

S508271

PACKING

"V" PACKING

1шт.

8

S508250

GLAND

HEAD, cylinder

1шт.

9

S225622

PISTON

split - (Rod end)

1шт.

10

S92652

SPACER

1шт.

11

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING

1шт.

12

S92641

RING

WASHER, back up

1шт.

13

187-1820

SELF-TAP SCREW,#8 x 1/4"

SCREW, self tapping - No. 8 NF x 1/4"

1шт.

14

S220044

ROD

SEAL, rod

1шт.

15

S92653

WIPER

rod

1шт.

16

S505934

ROD, piston - (Includes 2 of item 1)

1шт.

17

221-1661

PLUG

pipe - 1/8" NPt - (Hex head)

1шт.

18

G33236

OPEN END WRENCH

WRENCH, spanner - (Not illustrated)

1шт.

19

S224268

TOOL

WRENCH, Williams model XTV-5-PCF torque, 300 lbs, 2000 lbs. - 1" drive - Vernier click type - (Not illustrated)

1шт.

20

S224269

TOOL

MULTIPLIER, Williams model T/M 1500 torque, 4-1-1/2" drive - (Not illustrated)

1шт.

21

S224270

SOCKET

Williams model 8-696-3", 1-1/2" drive - (6 point) - (Not illustrated)

1шт.

22

S605750

KIT

service - (Includes items 9 thru 21) - (Not illustrated)

1шт.

23

S606555

PACKAGE

KIT, service - (Head lamp)

1шт.
