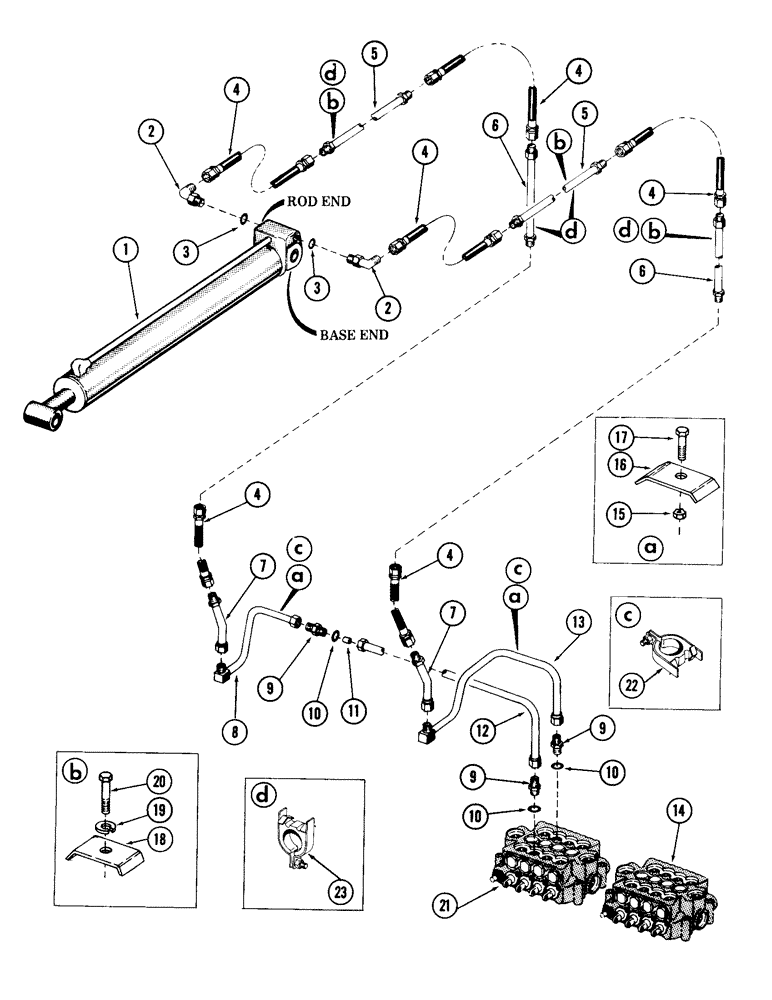

Запчасти Case 980 (202) - CROWD CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, crowd - (For breakdown, see figure 204)

1шт.

2

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Swivel

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(1.403" OD)

2шт.

4

S8628

HOSE

High pressure - 1" ID x 36" long (With 1-5/16"-12 female pressed on couplings)

6шт.

5

S208811

TUBE ASSY.,1.25" OD x 52.9" L

LINE, hydraulic

2шт.

6

S211850

TUBE ASSY.,1.25" OD x 46.4" L

LINE, hydraulic

1шт.

7

S211849

LINE,1.25" OD

Hydraulic

2шт.

8

S502109

LINE,1.25" OD

Hydraulic

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter, flared

3шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(1.156" OD)

3шт.

11

S79252

REGULATOR

Flow

1шт.

12

S502078

TUBE ASSY.,1.25" OD x 9.1, 19" L

LINE, hydraulic

1шт.

13

S502079

TURBINE,1.25" OD

LINE, hydraulic

1шт.

14

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 150)

1шт.

15

131-10

NUT,1/2"-13, GB

(Used on units with S/N 6203000 thru 6203568)

2шт.

16

S46397

CLAMP

Tube - (Used on units with S/N 6203000 thru 6203568)

2шт.

17

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

(Used on units with S/N 6203000 thru 6203568)

2шт.

18

S46397

CLAMP

Tube - (Used on units with S/N 6203000 thru 6203610 and 6203612)

4шт.

19

92-8

LOCK WASHER,1/2"

(Used on units with S/N 6203000 thru 6203610 and 6203612)

4шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Used on units with S/N 6203000 thru 6203610 and 6203612)

4шт.

21

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 150)

1шт.

22

S93266

CLAMP

Tube - (Used on units with S/N 6203569 and after)

2шт.

23

S93266

CLAMP

Tube - (Used on units with S/N 6203611 and 6203613 and after)

4шт.
