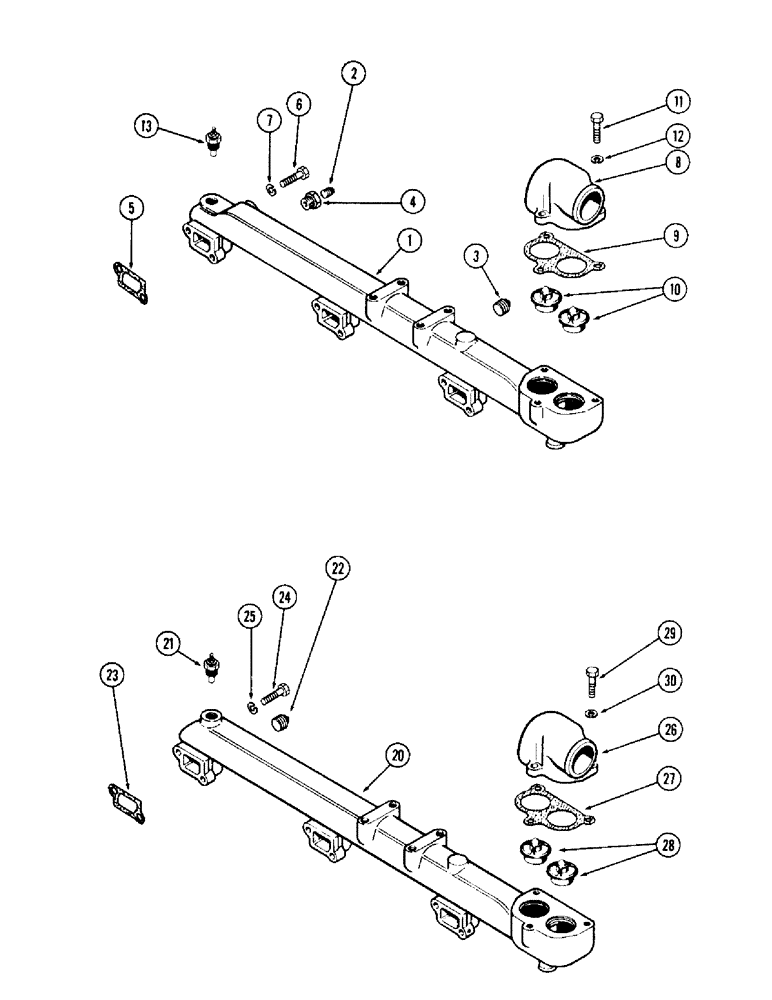

Запчасти Case 980 (006) - WATER MANIFOLD & THERMOSTAT, (504BDT) DIESEL ENGINE, W/ ALUMINUM MANIFOLD (01) - ENGINE

A44088

MANIFOLD

ASSY - water

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - water

1шт.

Ref #1 - A152742 06/07/96

1шт.

2

221-1843

PLUG

- pipe, 3/8" sq. hd.

1шт.

3

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - pipe, 3/4" hex. sckt. hd.

1шт.

4

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

BUSHING - reducer, 3/4 to 3/8" hex.

1шт.

Ref #4 - Replaced by 221-1089 06/07/96

1шт.

5

A58637

MANIFOLD GASKET

- water manifold

3шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

A58638

HOUSING

- thermostat

1шт.

9

A58639

GASKET

- thermostat housing

1шт.

10

A57641

THERMOSTAT

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

S27825

TEMPERATURE SENDER

UNIT - temperature sending

1шт.

20

A58909

MANIFOLD

- water, with cast iron

1шт.

21

S27825

TEMPERATURE SENDER

SENDER - engine coolant temperature, with cast iron manifold

1шт.

22

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - pipe, 3/4" hex. socket hd., with cast iron manifold

2шт.

23

A58637

MANIFOLD GASKET

- water manifold, with cast iron

3шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex., with cast iron manifold

3шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

with cast iron manifold Hex, 3/8"-16 x 2", G5

3шт.

25

92-6

LOCK WASHER,3/8"

with cast iron manifold 3/8"

6шт.

26

A60689

HOUSING

- thermostat, with cast iron manifold

1шт.

27

A58639

GASKET

- thermostat housing, with cast iron manifold

1шт.

28

A57641

THERMOSTAT

with cast iron manifold

2шт.

29

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

w /Cast iron manifold Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

30

92-6

LOCK WASHER,3/8"

with cast iron manifold 3/8"

3шт.
